# Spatial Analysis of US Census Data in R
## Geometries, maps, and methods
### Kyle Walker
### March 11, 2021

---

## About me

* Associate Professor of Geography at TCU

* Spatial data science researcher and consultant

* R package developer: tidycensus, tigris, mapboxapi

* Book coming this year: _Analyzing the US Census with R_
  - These workshops are a sneak preview of the book's content!

---

## SSDAN workshop series

* Today: spatial analysis and mapping in R

* Last Thursday (March 4): an introduction to analyzing US Census data with tidycensus ([code](https://github.com/walkerke/umich-workshop/blob/main/census-data-in-r/code/part-1-code.R) | [video recording](https://www.youtube.com/watch?v=PnFJfuJ83NI))

* Thursday, March 25: working with US Census microdata (PUMS) with R and tidycensus

---

## Today's agenda

* Hour 1: An introduction to Census geometries and the tigris package

* Hour 2: Mapping Census data in R

* Hour 3: Spatial analysis of Census data with the sf package

---
class: middle, center, inverse

## Part 1: An introduction to Census geometries and the tigris package

---

## US Census Geography

.footnote[Source: [US Census Bureau](https://www2.census.gov/geo/pdfs/reference/geodiagram.pdf)]

---

## Census TIGER/Line shapefiles

.pull-left[

]

.pull-right[

* TIGER: Topologically Integrated Geographic Encoding and Referencing database

* High-quality series of geographic datasets released by the US Census Bureau

* Distributed as _shapefiles_, a common GIS data format comprised of several related files

]

.footnote[Image source: [US Census Bureau](https://www2.census.gov/geo/pdfs/maps-data/data/tiger/tgrshp2020/TGRSHP2020_TechDoc.pdf)]
---

## A typical GIS workflow

---

## The __tigris__ R package

.pull-left[
<img src="https://raw.githubusercontent.com/walkerke/tigris/master/tools/readme/tigris_sticker.png" style="width: 400px">
]

.pull-right[

* R interface to the US Census Bureau's TIGER/Line shapefile FTP server

* No API key necessary - just install the package and start using Census shapefiles in R!

]

---

## Basic usage of tigris

* To use tigris, call a function that corresponds to the Census geography you want, optionally by `state` or `county`, when appropriate

```r
or_counties <- counties(state = "OR")

or_counties
```

```
## Simple feature collection with 36 features and 17 fields
## geometry type:  MULTIPOLYGON
## dimension:      XY
## bbox:           xmin: -124.7035 ymin: 41.99208 xmax: -116.4633 ymax: 46.2991
## geographic CRS: NAD83
## First 10 features:
##     STATEFP COUNTYFP COUNTYNS GEOID      NAME         NAMELSAD LSAD CLASSFP
## 19       41      063 01155135 41063   Wallowa   Wallowa County   06      H1
## 88       41      013 01155128 41013     Crook     Crook County   06      H1
## 125      41      005 01155127 41005 Clackamas Clackamas County   06      H1
## 173      41      007 01135846 41007   Clatsop   Clatsop County   06      H1
## 204      41      035 01155134 41035   Klamath   Klamath County   06      H1
## 222      41      049 01135860 41049    Morrow    Morrow County   06      H1
## 279      41      029 01135853 41029   Jackson   Jackson County   06      H1
## 320      41      051 01135861 41051 Multnomah Multnomah County   06      H1
## 356      41      001 01135845 41001     Baker     Baker County   06      H1
## 500      41      003 01155126 41003    Benton    Benton County   06      H1
##     MTFCC CSAFP CBSAFP METDIVFP FUNCSTAT       ALAND    AWATER    INTPTLAT
## 19  G4020  <NA>   <NA>     <NA>        A  8147835329  14191752 +45.5937530
## 88  G4020   140  39260     <NA>        A  7715390842  21004473 +44.1630537
## 125 G4020   440  38900     <NA>        A  4845035564  31872078 +45.1604934
## 173 G4020  <NA>  11820     <NA>        A  2144872198 661629272 +46.0245094
## 204 G4020  <NA>  28900     <NA>        A 15391639810 503686589 +42.6837613
## 222 G4020  <NA>  25840     <NA>        A  5259046542  44372276 +45.4254956
## 279 G4020   366  32780     <NA>        A  7208597903  46766412 +42.4116214
## 320 G4020   440  38900     <NA>        A  1116560269  88220750 +45.5477107
## 356 G4020  <NA>   <NA>     <NA>        A  7945996793  51832631 +44.7034268
## 500 G4020   440  18700     <NA>        A  1748712549   7740248 +44.4938816
##         INTPTLON                       geometry
## 19  -117.1855796 MULTIPOLYGON (((-117.7475 4...
## 88  -120.3715849 MULTIPOLYGON (((-121.0145 4...
## 125 -122.1951274 MULTIPOLYGON (((-122.7437 4...
## 173 -123.7050366 MULTIPOLYGON (((-124.0081 4...
## 204 -121.6461682 MULTIPOLYGON (((-121.3165 4...
## 222 -119.6023111 MULTIPOLYGON (((-119.9982 4...
## 279 -122.6756106 MULTIPOLYGON (((-122.9512 4...
## 320 -122.4173625 MULTIPOLYGON (((-122.8675 4...
## 356 -117.6919334 MULTIPOLYGON (((-117.9462 4...
## 500 -123.4246641 MULTIPOLYGON (((-123.182 44...
```
---

```r

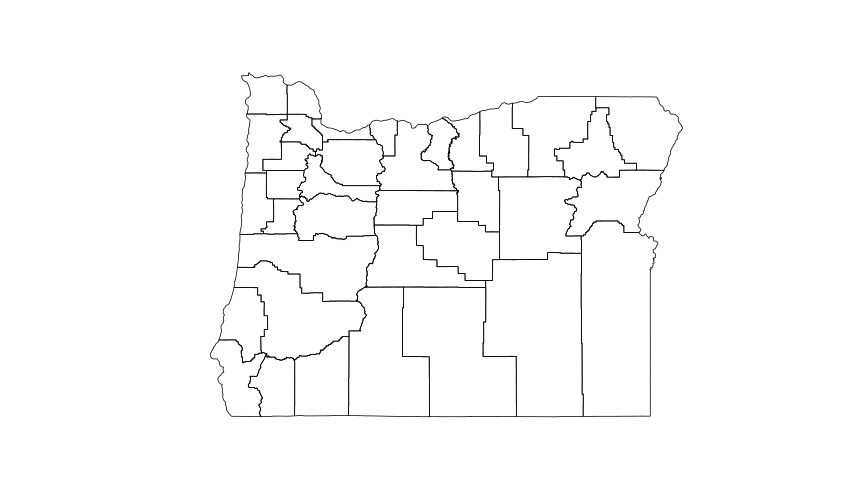

plot(or_counties$geometry)
```

![](index_files/figure-html/basic-plot-1.png)

---

## The __sf__ package and simple feature geometry

.pull-left[

]

.pull-right[

* The sf package implements a _simple features data model_ for vector spatial data in R

* Vector geometries: _points_, _lines_, and _polygons_ stored in a list-column of a data frame

* Allows for tidy spatial data analysis (coming in hour 3!)

]

---

## Datasets available in tigris

* __Legal entities__: units that have legal significance in the US (e.g. states, counties)

* __Statistical entities__: units that are used to tabulate Census data but do not have legal standing (e.g. Census tracts or block groups)

* __Geographic features__: other geographic datasets provided by the Census Bureau that are not used for demographic tabulation (e.g. roads, water)

---

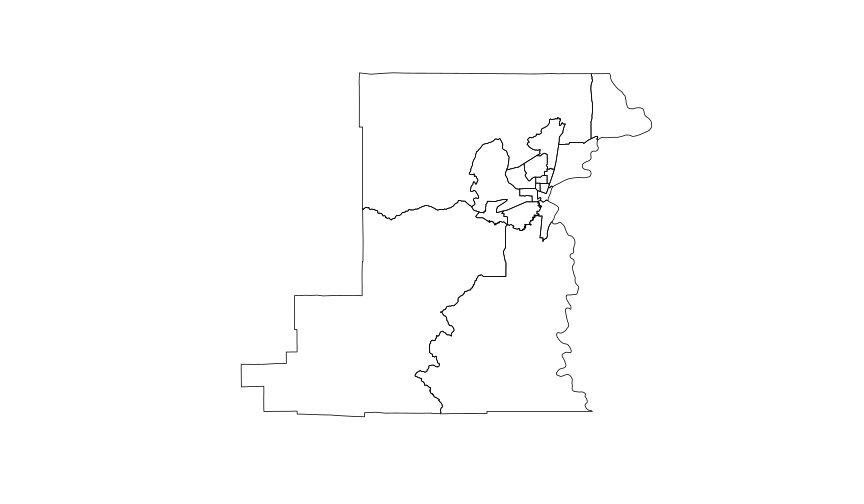

## Example: statistical entities

```r
benton_tracts <- tracts(state = "OR", county = "Benton")

plot(benton_tracts$geometry)
```

![](index_files/figure-html/benton-tracts-1.png)

---

## Example: geographic features

```r
benton_roads <- roads(state = "OR", county = "Benton")

plot(benton_roads$geometry)
```

![](index_files/figure-html/benton-roads-1.png)

---

## Example: geographic features

```r

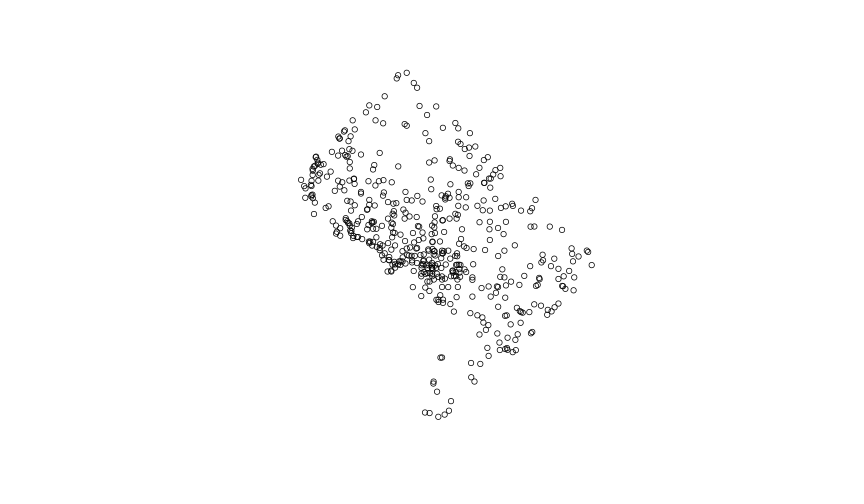

dc_landmarks <- landmarks("DC", type = "point")

plot(dc_landmarks$geometry)
```

![](index_files/figure-html/dc-landmarks-1.png)

---

## How tigris works

When you call a tigris function, it does the following:

* _Downloads_ your data from the US Census Bureau website;

* _Stores_ your data in a temporary directory by default;

* _Loads_ your data into R as a simple features object using `sf::st_read()`

* Recommended option: use `options(tigris_use_cache = TRUE)` to cache downloaded shapefiles and prevent having to re-download every time you use them

---
class: middle, center, inverse

## tigris features and options

---

## Cartographic boundary shapefiles

.pull-left[

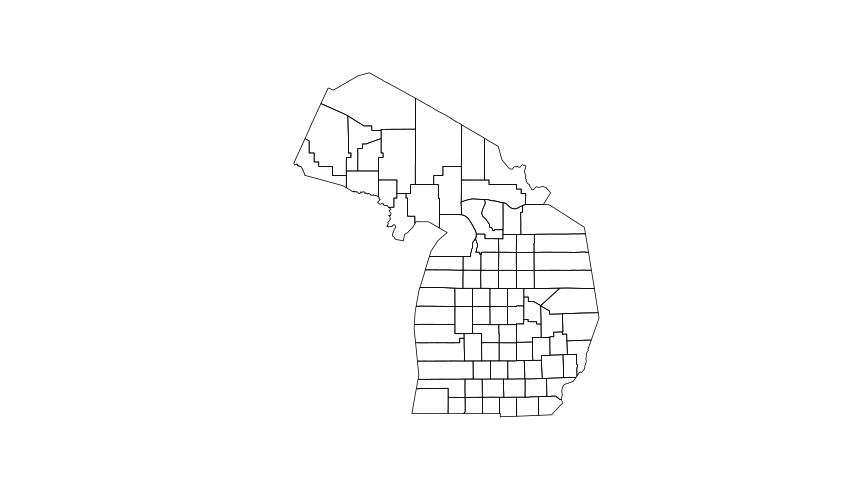

* Question I've received over the years: "Why does Michigan look so weird?"

* The core TIGER/Line shapefiles include _water area_ that belongs to US states and counties

]

.pull-right[

```r
mi_counties <- counties("MI")

plot(mi_counties$geometry)
```

![](index_files/figure-html/michigan-tiger-1.png)
]

---

## Cartographic boundary shapefiles

.pull-left[

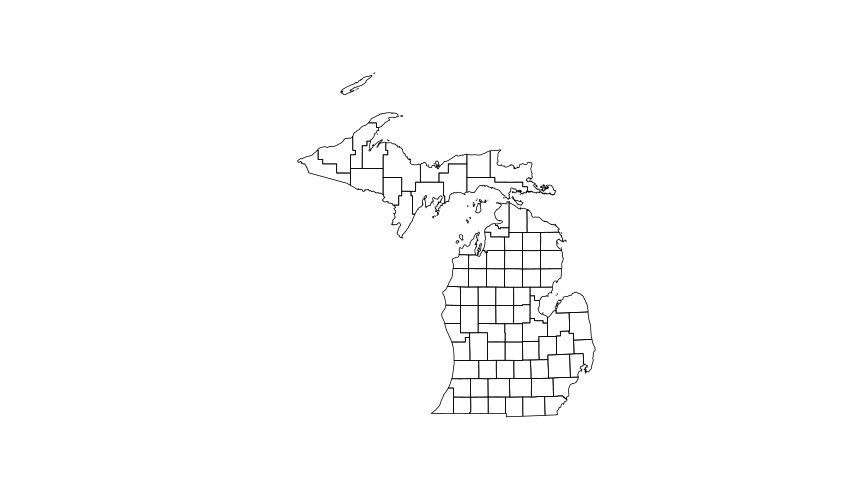

* Use the argument `cb = TRUE` to obtain a _cartographic boundary shapefile_ pre-clipped to the US shoreline

* For some geographies, highly generalized (1:5 million and 1:20 million) shapefiles are available with the `resolution` argument
]

.pull-right[

```r
mi_counties_cb <- counties("MI", cb = TRUE)

plot(mi_counties_cb$geometry)
```

![](index_files/figure-html/michigan-cb-1.png)
]

---

## Understanding yearly differences in TIGER/Line files

* Whereas legal entities change shape very rarely (but they do change!), statistical entities change with every decennial Census

* tigris fetches Census shapefiles from 1990 up through 2020

```r
tarrant90 <- tracts("TX", "Tarrant", cb = TRUE, year = 1990)
tarrant00 <- tracts("TX", "Tarrant", cb = TRUE, year = 2000)
tarrant10 <- tracts("TX", "Tarrant", cb = TRUE, year = 2010)
# Cartographic boundary files not yet released for 2020
tarrant20 <- tracts("TX", "Tarrant", year = 2020)
```
---

```r

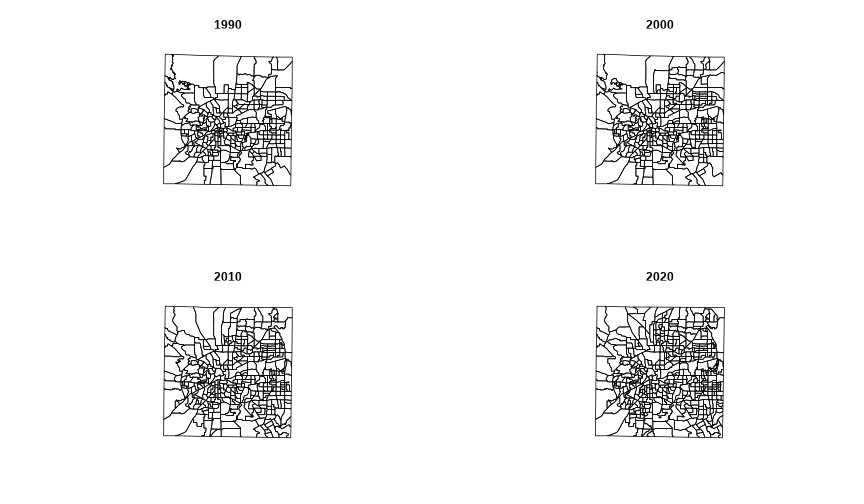

par(mfrow = c(2, 2))

plot(tarrant90$geometry, main = "1990")
plot(tarrant00$geometry, main = "2000")
plot(tarrant10$geometry, main = "2010")
plot(tarrant20$geometry, main = "2020")
```

![](index_files/figure-html/plot-yearly-data-1.png)

---

## Interactive viewing of data with __mapview__

* The mapview package brings interactive spatial data viewing to R:

```r
library(mapview)

mapview(tarrant20)
```

* As an extension, use the leafsync package to interactively compare two or more maps

```r
library(leafsync)

sync(mapview(tarrant90), mapview(tarrant20))
```

---

## Combining spatial datasets

* The `map_*()` family of functions in the tidyverse's purrr package allows for iteration over values/datasets, which works well for assembly of regional or national objects

```r
library(tidyverse)

state_codes <- c(state.abb, "DC")

us_bgs <- map_df(state_codes, ~block_groups(state = .x, cb = TRUE))

glimpse(us_bgs)
```

```
## Rows: 217,453
## Columns: 11
## $ STATEFP  <chr> "01", "01", "01", "01", "01", "01", "01", "01", "01", "01", …
## $ COUNTYFP <chr> "073", "025", "077", "055", "131", "055", "055", "015", "073…
## $ TRACTCE  <chr> "012910", "957602", "011802", "010200", "034700", "010601", …
## $ BLKGRPCE <chr> "1", "5", "2", "5", "1", "1", "2", "1", "1", "2", "2", "1", …
## $ AFFGEOID <chr> "1500000US010730129101", "1500000US010259576025", "1500000US…
## $ GEOID    <chr> "010730129101", "010259576025", "010770118022", "01055010200…
## $ NAME     <chr> "1", "5", "2", "5", "1", "1", "2", "1", "1", "2", "2", "1", …
## $ LSAD     <chr> "BG", "BG", "BG", "BG", "BG", "BG", "BG", "BG", "BG", "BG", …
## $ ALAND    <dbl> 3671177, 5858511, 4693254, 2359614, 402854096, 11699694, 418…
## $ AWATER   <dbl> 150769, 0, 4993, 0, 19530524, 1158709, 0, 6370, 0, 0, 25350,…
## $ geometry <MULTIPOLYGON [°]> MULTIPOLYGON (((-86.75138 3..., MULTIPOLYGON ((…
```
---

## US Census shapefiles and coordinate reference systems

* _Coordinate reference system_ (CRS): how coordinates in your spatial data are referenced to the Earth's surface

* Distinction: _geographic coordinate systems_ (longitude/latitude) and _projected coordinate systems_ (planar, commonly measured in meters or US feet)

* CRS used by Census shapefiles: North American Datum of 1983 (EPSG code 4269)

---

```r
library(sf)

fl_counties <- counties("FL", cb = TRUE)

st_crs(fl_counties)
```

```
## Coordinate Reference System:
##   User input: NAD83
##   wkt:
## GEOGCRS["NAD83",
##     DATUM["North American Datum 1983",
##         ELLIPSOID["GRS 1980",6378137,298.257222101,
##             LENGTHUNIT["metre",1]]],
##     PRIMEM["Greenwich",0,
##         ANGLEUNIT["degree",0.0174532925199433]],
##     CS[ellipsoidal,2],
##         AXIS["latitude",north,
##             ORDER[1],
##             ANGLEUNIT["degree",0.0174532925199433]],
##         AXIS["longitude",east,
##             ORDER[2],
##             ANGLEUNIT["degree",0.0174532925199433]],
##     ID["EPSG",4269]]
```
---

## Choosing a coordinate reference system

* __crsuggest__ my _developmental_ R package for helping choose the right coordinate system transformation

* To install: `remotes::install_github("walkerke/crsuggest")`

* Two core functions: `suggest_crs()` for a table of CRS recommendations; `suggest_top_crs()` for a quick best match

---

## Choosing a coordinate reference system

```r
library(crsuggest)

fl_crs <- suggest_crs(fl_counties)

glimpse(fl_crs)
```

```
## Rows: 10
## Columns: 7
## $ area_code <chr> "1379", "1379", "1379", "1379", "2188", "2188", "2188", "21…
## $ crs_type  <chr> "projected", "projected", "projected", "projected", "projec…
## $ crs_code  <chr> "3086", "3087", "3513", "6439", "2237", "2778", "2882", "35…
## $ crs_name  <chr> "NAD83 / Florida GDL Albers", "NAD83(HARN) / Florida GDL Al…
## $ crs_gcs   <chr> "4269", "4152", "4759", "6318", "4269", "4152", "4152", "47…
## $ crs_units <chr> "m", "m", "m", "m", "us-ft", "m", "us-ft", "m", "us-ft", "m"
## $ crs_proj4 <chr> "+proj=aea +lat_0=24 +lon_0=-84 +lat_1=24 +lat_2=31.5 +x_0=…
```

---

## CRS transformations

* Use the `st_transform()` function in the sf package to perform coordinate reference system transformations with the appropriate EPSG code

```r
fl_projected <- st_transform(fl_counties, crs = 3086)

head(fl_projected)
```

```
## Simple feature collection with 6 features and 9 fields
## geometry type:  MULTIPOLYGON
## dimension:      XY
## bbox:           xmin: 83061.43 ymin: 130374.3 xmax: 788415.3 ymax: 780618.8
## projected CRS:  NAD83 / Florida GDL Albers
##     STATEFP COUNTYFP COUNTYNS       AFFGEOID GEOID         NAME LSAD      ALAND
## 24       12      075 00295724 0500000US12075 12075         Levy   06 2896183010
## 96       12      086 00295755 0500000US12086 12086   Miami-Dade   06 4920565755
## 97       12      073 00306916 0500000US12073 12073         Leon   06 1727237331
## 98       12      057 00295757 0500000US12057 12057 Hillsborough   06 2646772012
## 99       12      083 00306922 0500000US12083 12083       Marion   06 4113978836
## 100      12      113 00306914 0500000US12113 12113   Santa Rosa   06 2622050628
##         AWATER                       geometry
## 24   762935040 MULTIPOLYGON (((493790.2 56...
## 96  1376144237 MULTIPOLYGON (((783767.2 17...
## 97    90397079 MULTIPOLYGON (((331309.3 70...
## 98   631505816 MULTIPOLYGON (((555139.1 42...
## 99   192297049 MULTIPOLYGON (((542215.2 56...
## 100  418020790 MULTIPOLYGON (((83267.92 76...
```

---

## Part 1 exercises

* Give tigris a try for yourselves!  [Explore the available geographies in the tigris documentation](https://github.com/walkerke/tigris) and fetch data for a state and/or county of your choosing.  Plot the result with `plot()` or with `mapview()`.

---
class: middle, center, inverse

## Part 2: Mapping US Census data in R

---

## Typical Census GIS workflows

Traditionally, getting "spatial" Census data requires:

* Fetching shapefiles from the Census website;

* Downloading a CSV of data, cleaning/formatting it;

* Loading geometries and data into your GIS of choice;

* Aligning key fields in your GIS and joining your data

---

## Geometry in tidycensus

* tidycensus takes care of this entire process with the argument `geometry = TRUE`

```r
library(tidycensus)
options(tigris_use_cache = TRUE)

dc_income <- get_acs(geography = "tract",
                     variables = c(hhincome = "B19013_001"),
                     state = "DC",
                     geometry = TRUE)
```

---

```r
dc_income
```

```
## Simple feature collection with 179 features and 5 fields
## geometry type:  POLYGON
## dimension:      XY
## bbox:           xmin: -77.11976 ymin: 38.79164 xmax: -76.9094 ymax: 38.99511
## geographic CRS: NAD83
## First 10 features:
##          GEOID                                                           NAME
## 1  11001009509 Census Tract 95.09, District of Columbia, District of Columbia
## 2  11001010100   Census Tract 101, District of Columbia, District of Columbia
## 3  11001008301 Census Tract 83.01, District of Columbia, District of Columbia
## 4  11001002101 Census Tract 21.01, District of Columbia, District of Columbia
## 5  11001004100    Census Tract 41, District of Columbia, District of Columbia
## 6  11001008001 Census Tract 80.01, District of Columbia, District of Columbia
## 7  11001002900    Census Tract 29, District of Columbia, District of Columbia
## 8  11001005600    Census Tract 56, District of Columbia, District of Columbia
## 9  11001007605 Census Tract 76.05, District of Columbia, District of Columbia
## 10 11001005900    Census Tract 59, District of Columbia, District of Columbia
##    variable estimate   moe                       geometry
## 1  hhincome    75515 19621 POLYGON ((-77.00201 38.9510...
## 2  hhincome    94861 16089 POLYGON ((-77.03653 38.9056...
## 3  hhincome   138487 30838 POLYGON ((-77.00352 38.9000...
## 4  hhincome    67984 11327 POLYGON ((-77.02803 38.9610...
## 5  hhincome   156625 27218 POLYGON ((-77.05832 38.9177...
## 6  hhincome   154423 28910 POLYGON ((-76.99025 38.8973...
## 7  hhincome   116875 20769 POLYGON ((-77.03273 38.9341...
## 8  hhincome    79357 16304 POLYGON ((-77.05779 38.9025...
## 9  hhincome    38659  7543 POLYGON ((-76.98436 38.8666...
## 10 hhincome    98750 21107 POLYGON ((-77.01901 38.8946...
```

---

## Basic mapping with base plotting

```r
plot(dc_income["estimate"])
```

![](index_files/figure-html/plot-geometry-1.png)

---

## Basic mapping with ggplot2

* `geom_sf()`: ggplot2 method to use simple features in your data visualization workflows

```r
library(tidyverse)

dc_map <- ggplot(dc_income, aes(fill = estimate)) +
  geom_sf()
```

---

```r
dc_map
```

![](index_files/figure-html/plot-geom-sf-1.png)

---
class: middle, center, inverse

## Mapping Census data with tmap

---

## The tmap package

.pull-left[

]

.pull-right[

* Comprehensive package for thematic mapping in R

* ggplot2-like syntax, but designed in a way to feel friendly to GIS cartographers coming to R for mapping

]

---

## Example data

* Our example: comparing the distributions of racial and ethnic groups in Hennepin County, Minnesota (Minneapolis)

```r
hennepin_race <- get_acs(
  geography = "tract",
  state = "MN",
  county = "Hennepin",
  variables = c(White = "B03002_003",
                Black = "B03002_004",
                Native = "B03002_005",
                Asian = "B03002_006",
                Hispanic = "B03002_012"),
  summary_var = "B03002_001",
  geometry = TRUE
) %>%
  mutate(percent = 100 * (estimate / summary_est))
```

---

```r
glimpse(hennepin_race)
```

```
## Rows: 1,495
## Columns: 9
## $ GEOID       <chr> "27053103900", "27053103900", "27053103900", "27053103900…
## $ NAME        <chr> "Census Tract 1039, Hennepin County, Minnesota", "Census …
## $ variable    <chr> "White", "Black", "Native", "Asian", "Hispanic", "White",…
## $ estimate    <dbl> 2940, 372, 10, 504, 214, 4951, 175, 77, 24, 250, 4757, 75…
## $ moe         <dbl> 421, 276, 15, 153, 76, 402, 277, 85, 30, 175, 327, 57, 34…
## $ summary_est <dbl> 4221, 4221, 4221, 4221, 4221, 5753, 5753, 5753, 5753, 575…
## $ summary_moe <dbl> 447, 447, 447, 447, 447, 316, 316, 316, 316, 316, 286, 28…
## $ geometry    <MULTIPOLYGON [°]> MULTIPOLYGON (((-93.23693 4..., MULTIPOLYGON…
## $ percent     <dbl> 69.6517413, 8.8130775, 0.2369107, 11.9402985, 5.0698887, …
```
---

## Basic plotting with tmap

.pull-left[

* `tm_shape()` initializes the shape; `tm_polygons()` shows the polygons for quick display

```r
library(tmap)

hennepin_black <- filter(hennepin_race,
                         variable == "Black")

tm_shape(hennepin_black) +
  tm_polygons()
```

]

.pull-right[

![](index_files/figure-html/polygons-map-1.png)

]

---

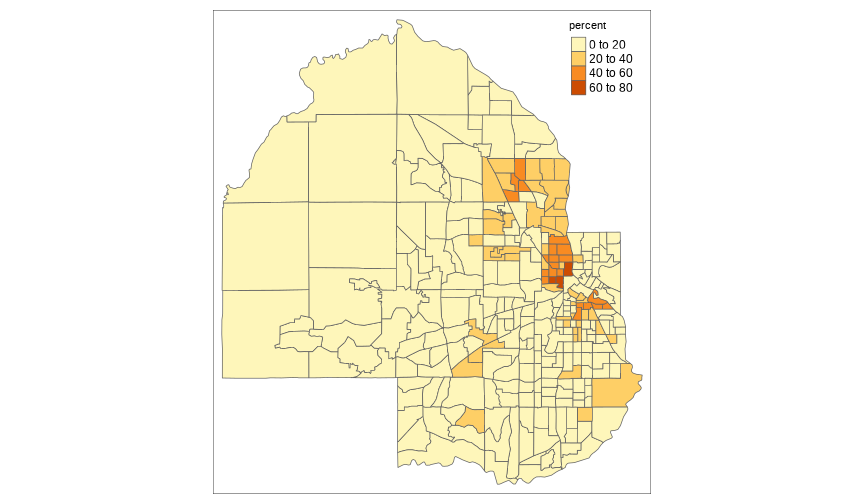

## Choropleth mapping with tmap

.pull-left[

* _Choropleth maps_ show statistical variation through color or shading of areas

* They generally should be used with _normalized data_ such as rates or percentages, not counts

```r
tm_shape(hennepin_black) +
  tm_polygons(col = "percent")
```

]

.pull-right[

![](index_files/figure-html/choropleth-show-1.png)

]

---

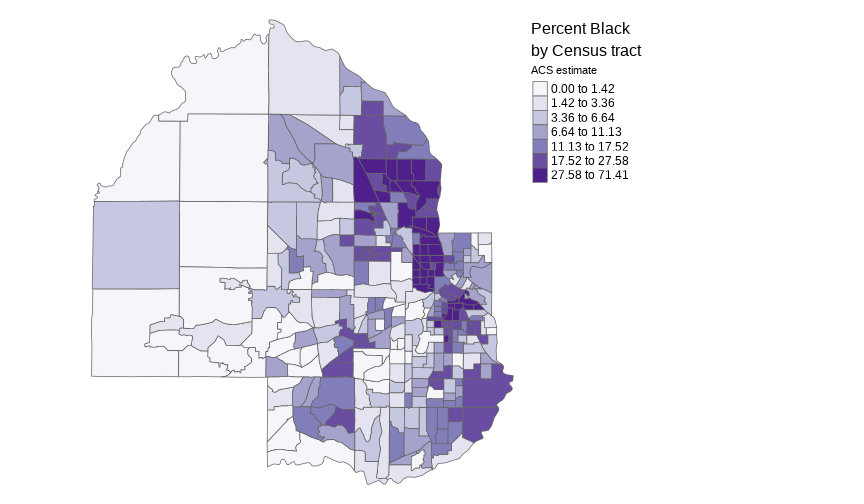

## Modifying choropleth options

* Color palettes can be modified with the `palette` parameter, which accepts ColorBrewer and viridis palettes

* If you've mapped with GIS software before, the `style` parameter implements various breaks methods, including `"equal"`, `"quantile"` and `"jenks"`

---

.pull-left[

```r
tm_shape(hennepin_black,
         projection = sf::st_crs(26915)) +
  tm_polygons(col = "percent",
          style = "quantile",
          n = 7,
          palette = "Purples",
          title = "ACS estimate") +
  tm_layout(title = "Percent Black\nby Census tract",
            frame = FALSE,
            legend.outside = TRUE)
```

]

.pull-right[

![](index_files/figure-html/custom-choropleth-show-1.png)

]

---

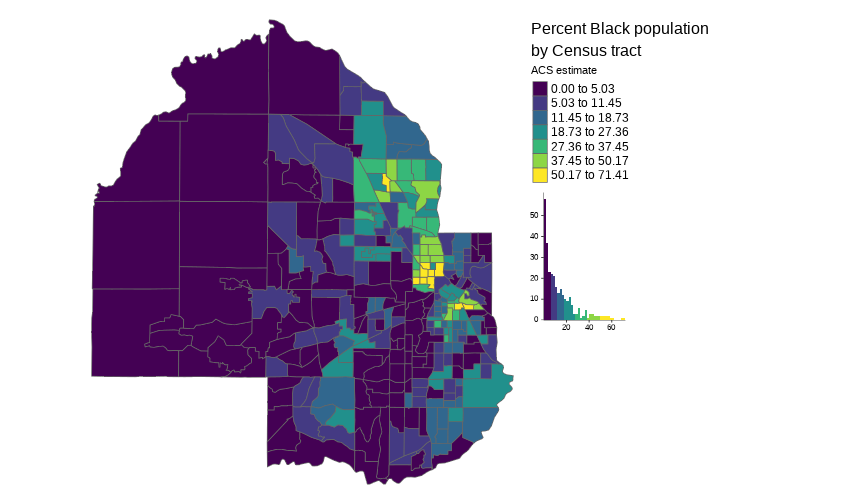

## tmap choropleth tips and tricks

* Use `tmaptools::palette_explorer()` to interactively browse color options

* Use the option `tm_layout(legend.hist = TRUE)` to display the distribution of data values among classes

---

.pull-left[

```r
tm_shape(hennepin_black,
         projection = sf::st_crs(26915)) +
  tm_polygons(col = "percent",
          style = "jenks",
          n = 7,
          palette = "viridis",
          title = "ACS estimate",
          legend.hist = TRUE) +
  tm_layout(title = "Percent Black population\nby Census tract",
            frame = FALSE,
            legend.outside = TRUE)
```

]

.pull-right[

![](index_files/figure-html/jenks-show-1.png)

]

---

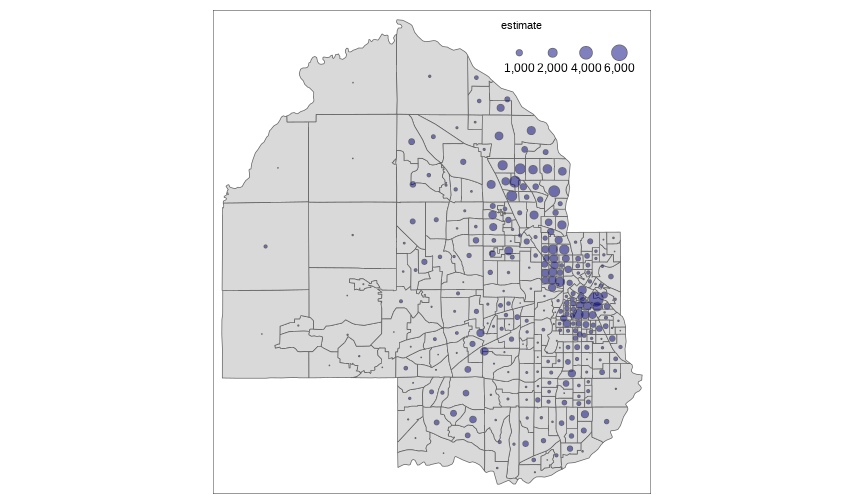

## Graduated symbol maps

* Graduated symbols: using _size_ of a symbol to represent statistical variation on a map

* Implemented in tmap with `tm_bubbles()`

```r
symbol_map <- tm_shape(hennepin_black) +
  tm_polygons() +
  tm_bubbles(size = "estimate", alpha = 0.5,
             col = "navy")
```

---

```r
symbol_map
```

![](index_files/figure-html/bubbles-map-1.png)

---

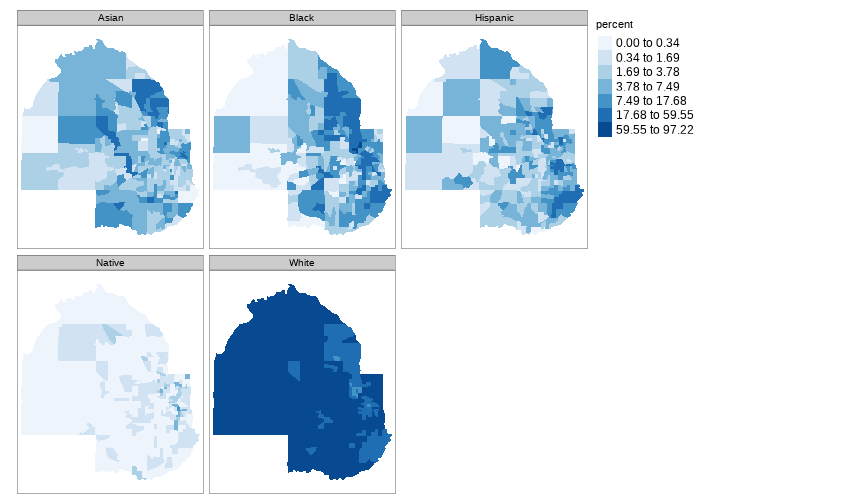

## Faceted mapping

* `tm_facets()` allows for comparative small multiples maps.  It works well with long-form spatial data returned by tidycensus

```r
facet_map <- tm_shape(hennepin_race,
         projection = sf::st_crs(26915)) +
  tm_facets(by = "variable", scale.factor = 4) +
  tm_fill(col = "percent",
          style = "quantile",
          n = 7,
          palette = "Blues")
```

---

```r
facet_map
```

![](index_files/figure-html/facet-map-1.png)

---

## Advanced example: dot-density mapping

.pull-left[

* Dot-density maps scatter dots relative to data values, and are good for showing within-polygon diversity

* To generate points for dot-density mapping, points should be proportionally sampled in polygons relative to data values then randomized with `slice_sample()`

]

.pull-right[

```r
groups <- unique(hennepin_race$variable)

hennepin_dots <- map_df(groups, ~{
  hennepin_race %>%
    filter(variable == .x) %>%
    st_transform(26915) %>%
    mutate(est50 = as.integer(estimate / 50)) %>%
    st_sample(size = .$est50, exact = TRUE) %>%
    st_sf() %>%
    mutate(group = .x)
}) %>%
  slice_sample(prop = 1)
```

]

---

```r
tm_shape(hennepin_dots) +
  tm_dots(col = "group", palette = "Set1", size = 0.005)
```

---

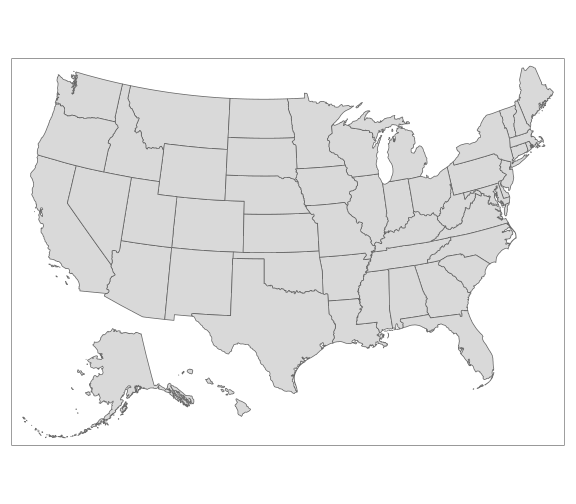

## Mapping the entire US with `shift_geo`

* The `shift_geo` parameter uses Bob Rudis's [albersusa geometries](https://github.com/hrbrmstr/albersusa) to shift and re-scale Alaska and Hawaii for thematic mapping

```r
us_median_age <- get_acs(geography = "state",
                         variables = "B01002_001",
                         year = 2019,
                         survey = "acs1",
                         geometry = TRUE,
                         shift_geo = TRUE)
```
---

```r
tm_shape(us_median_age) + tm_polygons()
```

![](index_files/figure-html/show-shift-geo-1.png)

---

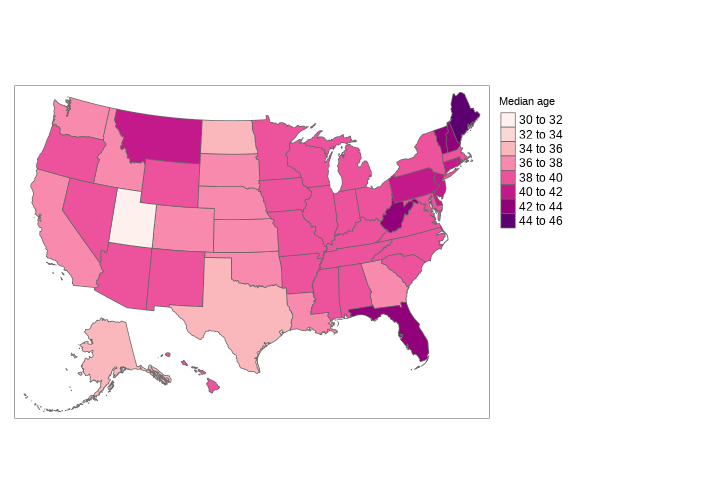

```r
tm_shape(us_median_age) +
  tm_polygons(col = "estimate", palette = "RdPu", title = "Median age") +
  tm_layout(legend.outside = TRUE)
```

![](index_files/figure-html/style-shift-geo-1.png)

---

## Interactive mapping

* For quick interactive mapping, use the `zcol` parameter in `mapview()` or `tmap_mode("view")` in tmap

* For customizable interactive mapping, check out the leaflet package and its integration with the Shiny framework for data dashboards

```r
library(mapview)

mapview(dc_income, zcol = "estimate")
```

---

## What if I still want to use a GIS?

* No problem! Write out your data to a shapefile/GeoJSON/GeoPackage with `sf::st_write()` and load into your GIS of choice

* Recommendation: use `output = "wide"` for multi-variable datasets (easier to use in a desktop GIS)

```r
library(sf)

st_write(dc_income, "data/dc_income.shp")
```

---

## Part 2 exercises

Try making your own map with tmap!

* If you are just getting started with tidycensus/the tidyverse, make a race/ethnicity map by adapting the code provided in this section but for a different county.

* If you are comfortable with tidycensus at this stage, pick a different variable to map instead!

---
class: middle, center, inverse

## Spatial analysis of US Census data with the sf package

---

## Spatial analysis in a GIS

.pull-left[

Some typical terminology for spatial analysis in a desktop GIS context:

* Select by Attributes

* Select by Location

* Spatial Join

* Geoprocessing (Clip, Dissolve, Union, etc.)

]

.pull-right[

]

---

## sf: a tidy data model for spatial analysis

* sf's data model is designed for integration within tidyverse data wrangling workflows

* Many tidyverse methods (including those presented last week) work on sf objects

* Geometries are "sticky" and not lost after performing data wrangling operations

* The `st_*()` family of functions help you complete many common GIS tasks

---

## Topic: COVID-19 vaccinations in Texas

* Of interest: how do COVID-19 vaccination rates vary geographically in Texas?

* The most granular geography available is the zip code, which we approximate with the Zip Code Tabulation Area (ZCTA)

* Data should be normalized by population given wide variations in ZCTA populations

---

## Data setup

* [Up-to-date vaccination data available from the Texas Department of State Health Services](https://dshs.texas.gov/coronavirus/AdditionalData.aspx); I've cleaned up the Excel spreadsheet for us

```r
library(tidyverse)

tx_vaccinations <- read_rds("spatial-analysis/data/tx_vaccinations.rds")

glimpse(tx_vaccinations)
```

```
## Rows: 2,487
## Columns: 4
## $ zip_code           <chr> "73301", "73344", "73960", "75001", "75002", "7500…
## $ total_vaccinations <dbl> 102, NA, 13, 3526, 18830, 9806, 13794, 4103, 8983,…
## $ first_dose         <dbl> 55, NA, 7, 2328, 11693, 6487, 9163, 2545, 5774, 64…
## $ fully_vaccinated   <dbl> 47, NA, NA, 1202, 7155, 3333, 4657, 1561, 3221, 33…
```

---

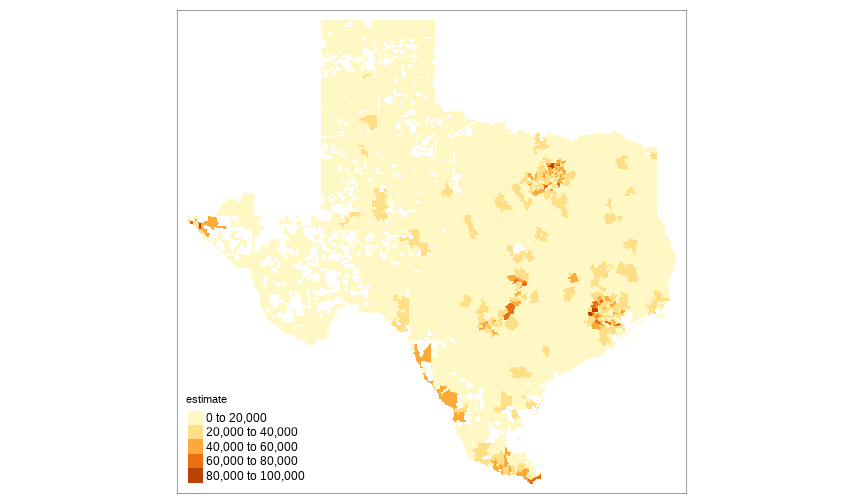

## Data setup

.pull-left[

* Given that vaccines are only administered to patients age 16 and up, we can acquire appropriate normalization data from the ACS Data Profile

```r
library(tidycensus)
options(tigris_use_cache = TRUE)

pop16up <- get_acs(
  geography = "zcta",
  variables = "DP03_0001",
  geometry = TRUE,
  state = "TX"
)
```

]

.pull-right[

```r
library(tmap)

tm_shape(pop16up) + tm_fill(col = "estimate")
```

![](index_files/figure-html/map-normalization-pop-1.png)
]

---

## "Joining" geometries and attributes

* dplyr's `*_join()` family of functions help analysts merge tabular data to sf objects

```r
tx_vacc_rate <- pop16up %>%
  left_join(tx_vaccinations, by = c("GEOID" = "zip_code")) %>%
  mutate(pct_vaccinated = 100 * (total_vaccinations / estimate)) %>%
  mutate(pct_vaccinated = ifelse(pct_vaccinated > 100, NA, pct_vaccinated))
```

---

```r

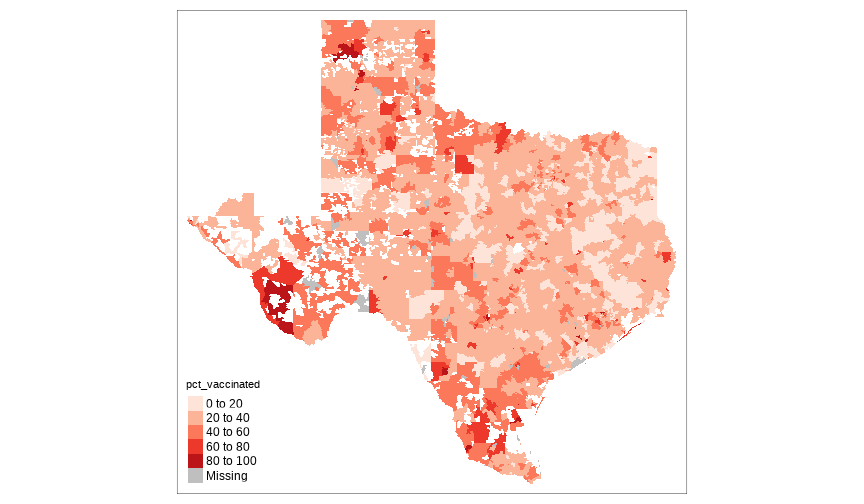

tm_shape(tx_vacc_rate) + tm_fill(col = "pct_vaccinated", palette = "Reds")
```

![](index_files/figure-html/map-rates-1.png)

---

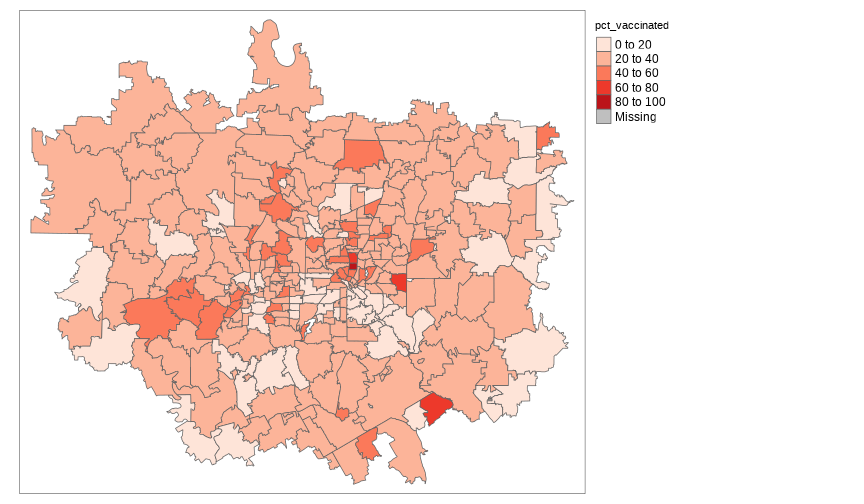

## Selecting data by attributes

* dplyr's `filter()` works on spatial data and allows for targeted visualization by attribute values

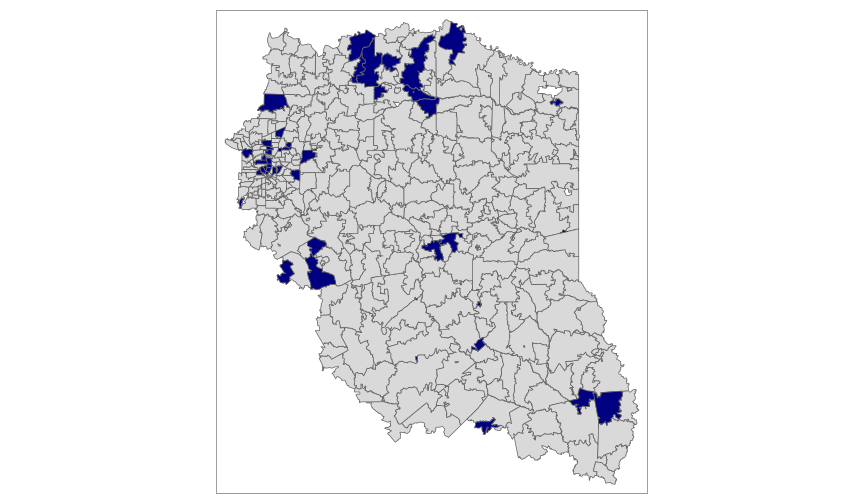

```r
dallas_area <- tx_vacc_rate %>%
  filter(str_sub(GEOID, 1, 2) == "75")

above_40 <- dallas_area %>%
  filter(pct_vaccinated >= 40)
```

---

```r
tm_shape(dallas_area) + tm_polygons() +
  tm_shape(above_40) + tm_polygons(col = "navy")
```

![](index_files/figure-html/above-40-1.png)

---
class: middle, center, inverse

## Spatial overlay

---

## Spatial overlay

* Common question: how do local characteristics vary within and between metropolitan areas?

* Methods: _spatial filtering_ ("select by location" in a GIS context) and _spatial joins_

* tigris geometries work well for a wide range of Census overlays

```r
dfw_metro <- core_based_statistical_areas(cb = TRUE) %>%
  filter(str_detect(NAME, "Dallas"))
```

---

## Spatial filters

* The sf package implements spatial filters using both base R notation and the tidyverse-style `st_filter()` function

For example,

```r
library(sf)

dfw_zips <- tx_vacc_rate[dfw_metro, ]
```

is equivalent to:

```r
dfw_zips <- st_filter(tx_vacc_rate, dfw_metro)
```

---

```r
tm_shape(dfw_zips) +
  tm_polygons(col = "pct_vaccinated", palette = "Reds") +
  tm_layout(legend.outside = TRUE)
```

![](index_files/figure-html/plot-filter-1.png)

---

## Spatial predicates

* The default _spatial predicate_, `st_intersects()`, defines the spatial relationship as any overlap between the two layers

* Many other spatial predicates are available ([see the sf documentation for more examples](https://r-spatial.github.io/sf/reference/geos_binary_pred.html))

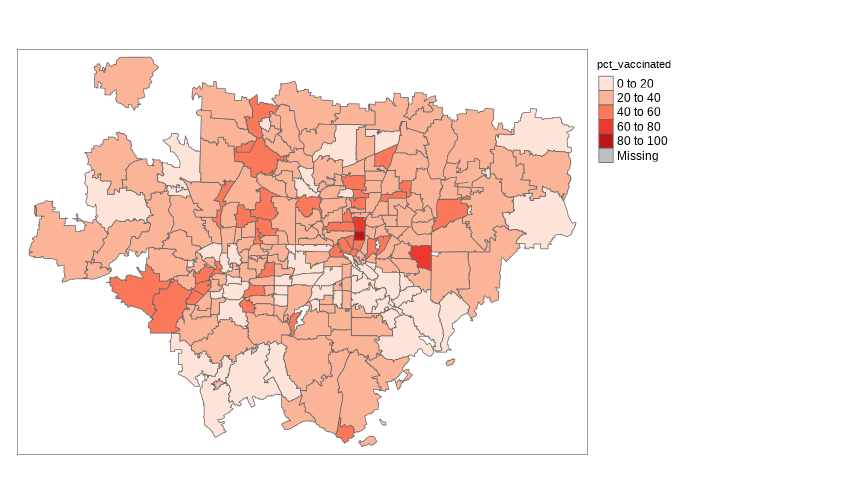

* Example: ZCTAs that fall entirely within the Dallas-Fort Worth metro boundary (do not cross the border)

```r
dfw_zips_within <- st_filter(tx_vacc_rate, dfw_metro, .predicate = st_within)
```

---

```r
tm_shape(dfw_zips_within) +
  tm_polygons(col = "pct_vaccinated", palette = "Reds") +
  tm_layout(legend.outside = TRUE)
```

![](index_files/figure-html/plot-within-1.png)

---

## Spatial joins

.pull-left[

* Spatial joins transfer attributes from one spatial dataset to another based on shared spatial relationships

* Like spatial filters, spatial joins rely on spatial predicates to determine spatial relationships between features

* Implemented in the sf package with `st_join()`

]

.pull-right[

```r
tx_metros <- core_based_statistical_areas(cb = TRUE) %>%
  filter(GEOID %in% c("19100", "26420", "41700", "12420")) %>%
  select(metro_name = NAME)

zips_by_metro <- tx_vacc_rate %>%
  st_join(tx_metros, left = FALSE)
```
]

---

```r
glimpse(zips_by_metro)
```

```
## Rows: 827
## Columns: 11
## $ GEOID              <chr> "77414", "75287", "78621", "76201", "78150", "7861…
## $ NAME               <chr> "ZCTA5 77414", "ZCTA5 75287", "ZCTA5 78621", "ZCTA…
## $ variable           <chr> "DP03_0001", "DP03_0001", "DP03_0001", "DP03_0001"…
## $ estimate           <dbl> 18595, 45980, 18275, 27079, 37, 9643, 1121, 12809,…
## $ moe                <dbl> 626, 883, 1288, 1116, 24, 1398, 271, 649, 973, 406…
## $ total_vaccinations <dbl> 3531, 9042, 4069, 4429, NA, 1953, 60, 4447, 9240, …
## $ first_dose         <dbl> 2433, 5745, 2984, 2860, NA, 1444, 40, 2970, 5830, …
## $ fully_vaccinated   <dbl> 1099, 3307, 1088, 1575, NA, 510, 20, 1486, 3416, 4…
## $ pct_vaccinated     <dbl> 18.988976, 19.665072, 22.265390, 16.355848, NA, 20…
## $ metro_name         <chr> "Houston-The Woodlands-Sugar Land, TX", "Dallas-Fo…
## $ geometry           <MULTIPOLYGON [°]> MULTIPOLYGON (((-96.07715 2..., MULTI…
```
---

## Comparative visualization

```r
ggplot(zips_by_metro) +
  geom_density(aes(x = pct_vaccinated), color = "navy", fill = "navy",
               alpha = 0.4) +
  theme_minimal() +
  facet_wrap(~metro_name) +
  labs(title = "Percent of population age 16+ vaccinated for COVID-19",
       subtitle = "ZCTAs, largest metropolitan areas in Texas",
       y = "Kernel density estimate",
       x = "Percent receiving at least one vaccine dose")
```

---

---
class: middle, center, inverse

## Advanced application: spatial clustering and group-wise spatial data analysis

---

## The spdep package

.pull-left[

* spdep: the workhorse R package for both exploratory spatial data analysis and spatial modeling

* Key concept: _spatial neighbors_

* spdep helps model spatial relationships for clustering analysis, spatial lags & smoothing, and spatially-aware modeling

]

.pull-right[

]

---

## Data setup

* Research question: can we identify contiguous "regions" in Wayne County, Michigan by age, income, and education?

```r
input_tracts <- get_acs(
  geography = "tract",
  variables = c(median_age = "B01002_001",
                median_income = "B19013_001",
                pct_college = "DP02_0068P"),
  state = "MI",
  county = "Wayne",
  geometry = TRUE,
  output = "wide"
) %>%
  select(-ends_with("M")) %>%
  na.omit()
```
---

## The SKATER algorithm

.pull-left[

* General concept: unsupervised clustering with spatial constraints

* SKATER: Spatial "Kluster" Analysis by Tree Edge Removal

* Uses minimum spanning trees to minimize within-group dissimilarity while ensuring that groups are spatially contiguous

]

.pull-right[

```r
library(spdep)

input_vars <- input_tracts %>%
  select(median_ageE:pct_collegeE) %>%
  st_drop_geometry() %>%
  scale() %>%
  as.data.frame()

nb <- poly2nb(input_tracts)
costs <- nbcosts(nb, input_vars)
weights <- nb2listw(nb, costs, style = "B")
```

]

---

## Regionalization with SKATER

```r
mst <- mstree(weights)

regions <- skater(mst[,1:2], input_vars, ncuts = 6)

input_tracts$group <- as.character(regions$group)
```

---

```r
tm_shape(input_tracts) + tm_polygons("group", palette = "Set1")
```

![](index_files/figure-html/plot-groups-1.png)

---

## Group-wise operations on spatial data

* dplyr's `group_by()` and `summarize()`, used together on a spatial object, implements an analogous operation to a _Dissolve_ in a GIS

```r
wayne_regions <- input_tracts %>%
  group_by(group) %>%
  summarize(across(.cols = where(is.numeric),
                   .fns = mean))
```

---

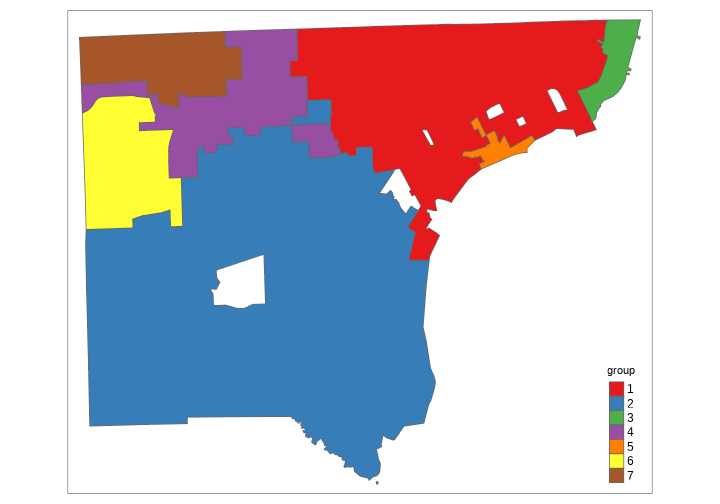

```r
tm_shape(wayne_regions) + tm_polygons(col = "group", palette = "Set1")
```

![](index_files/figure-html/wayne-regions-map-1.png)

---

```r
wayne_regions
```

```
## Simple feature collection with 7 features and 4 fields
## geometry type:  GEOMETRY
## dimension:      XY
## bbox:           xmin: -83.55191 ymin: 42.03334 xmax: -82.87023 ymax: 42.45101
## geographic CRS: NAD83
## # A tibble: 7 x 5
##   group median_ageE median_incomeE pct_collegeE                         geometry
##   <chr>       <dbl>          <dbl>        <dbl>                   <GEOMETRY [°]>
## 1 1            35.9         30436.         12.7 POLYGON ((-83.14968 42.24173, -…
## 2 2            40.5         57190.         19.7 MULTIPOLYGON (((-83.19159 42.03…
## 3 3            46.2        127539.         67.7 POLYGON ((-82.91176 42.3793, -8…
## 4 4            40.2         61136.         28.6 MULTIPOLYGON (((-83.40908 42.33…
## 5 5            33.2         47426.         57.1 MULTIPOLYGON (((-83.06632 42.32…
## 6 6            42.1        102535.         55.8 POLYGON ((-83.44288 42.3086, -8…
## 7 7            48.8        102002.         50.8 POLYGON ((-83.47005 42.39107, -…
```

---

## Part 3 exercises

Try putting together a spatial analysis workflow yourself!  Acquire data on median household income by Census tract for Texas:

```r
texas_income <- get_acs(
  geography = "tract",
  variables = "B19013_001",
  state = "TX",
  geometry = TRUE
)
```

Answer the following:

* How does median household income vary geographically in the Austin metropolitan area?  Show this on a map.

* How does the distribution of median household incomes by Census tract vary among the four largest metro areas in Texas?

---
class: middle, center, inverse

## Thank you!
