Spider lines for location-allocation results

Builds "spider lines" (also called allocation lines or desire lines): one line from each demand location to the facility that serves it. Works with results from p_median(), p_center(), cflp(), lscp(), mclp(), and huff(). Lines are straight by default; supply route_fun to draw lines that follow a road network instead.

Usage

spider_lines(
  result,
  allocations = c("primary", "all"),
  min_share = 0,
  cost_matrix = NULL,
  anchor = c("centroid", "point_on_surface"),
  route_fun = NULL,
  facilities = NULL
)

Arguments

result: A result from p_median(), p_center(), cflp(), lscp(), mclp(), or huff(), with demand and facility rows in the order the solver returned them.
allocations: Which links to draw. "primary" (default) draws at most one line per demand row: the assigned facility (.facility) or the highest-probability store (.primary_store). "all" also draws split allocations from cflp() and every store with non-zero probability from huff(); for the other solvers it is the same as "primary".
min_share: Drop links whose share is less than or equal to this value. Applies to primary and additional links alike; shares are never renormalized. Must be in [0, 1). Most useful for huff() results with allocations = "all".
cost_matrix: Optional demand x facility cost matrix, normally the one passed to the solver. Not needed for primary links, which take their cost from the solver's .cost column. If supplied, it takes precedence and provides cost for every link, including additional cflp() and huff() links.
anchor: How polygon (or multipoint) geometries are reduced to line endpoints: "centroid" (default, matching distance_matrix()) or "point_on_surface" (guaranteed to fall inside the polygon).
route_fun: Optional function that returns network-following geometries. It is called once as route_fun(from, to), where from and to are sf POINT data frames in EPSG:4326 with the same number of rows and an id column; row i of from should be routed to row i of to. Identical coordinate pairs are sent only once. It must return an sf or sfc object with one LINESTRING or MULTILINESTRING per row, in input order, with a known CRS. Return an empty geometry for a pair that cannot be routed; those links fall back to straight lines. r5r_route_fun() builds such a function from an r5r network.
facilities: Optional integer row indices of result$facilities (or result$stores) to draw links for. Other facilities' links are skipped before any geometry is built, so drawing one store's trade area from a large huff() result stays fast.

Value

An sf object in the CRS of result$demand, one row per link, with columns:

demand_index: row in result$demand
facility_index: row in result$facilities (or result$stores)
share: 1 for whole assignments; the allocation fraction for cflp(); the choice probability for huff()
weight: demand weight multiplied by share, when the solver recorded a weight column
cost: link cost from cost_matrix, or from the solver's .cost column for primary links; omitted when unavailable
length: length of the drawn line
routed: only when route_fun is used; FALSE where the router failed and a straight line was drawn instead

Geometry is LINESTRING, or MULTILINESTRING when route_fun is used. Counts of unassigned demand, filtered links, and routing failures are stored in the "spopt" attribute.

Details

Indices and matrices in spopt results are positional, so do not reorder or filter result$demand or result$facilities before calling spider_lines(). Join attributes onto the output with demand_index and facility_index instead.

Demand that the solver left unassigned (uncovered points in lscp() or mclp(), or an infeasible p_center()) produces no lines.

For data in longitude/latitude, lines are drawn as two-vertex segments. Use sf::st_segmentize() on the output if you need great-circle arcs.

Examples

# \donttest{
library(sf)

demand <- st_as_sf(data.frame(
  x = runif(100), y = runif(100), population = rpois(100, 500)
), coords = c("x", "y"))
facilities <- st_as_sf(data.frame(x = runif(20), y = runif(20)),
                       coords = c("x", "y"))

result <- p_median(demand, facilities, n_facilities = 5,
                   weight_col = "population")
lines <- spider_lines(result)

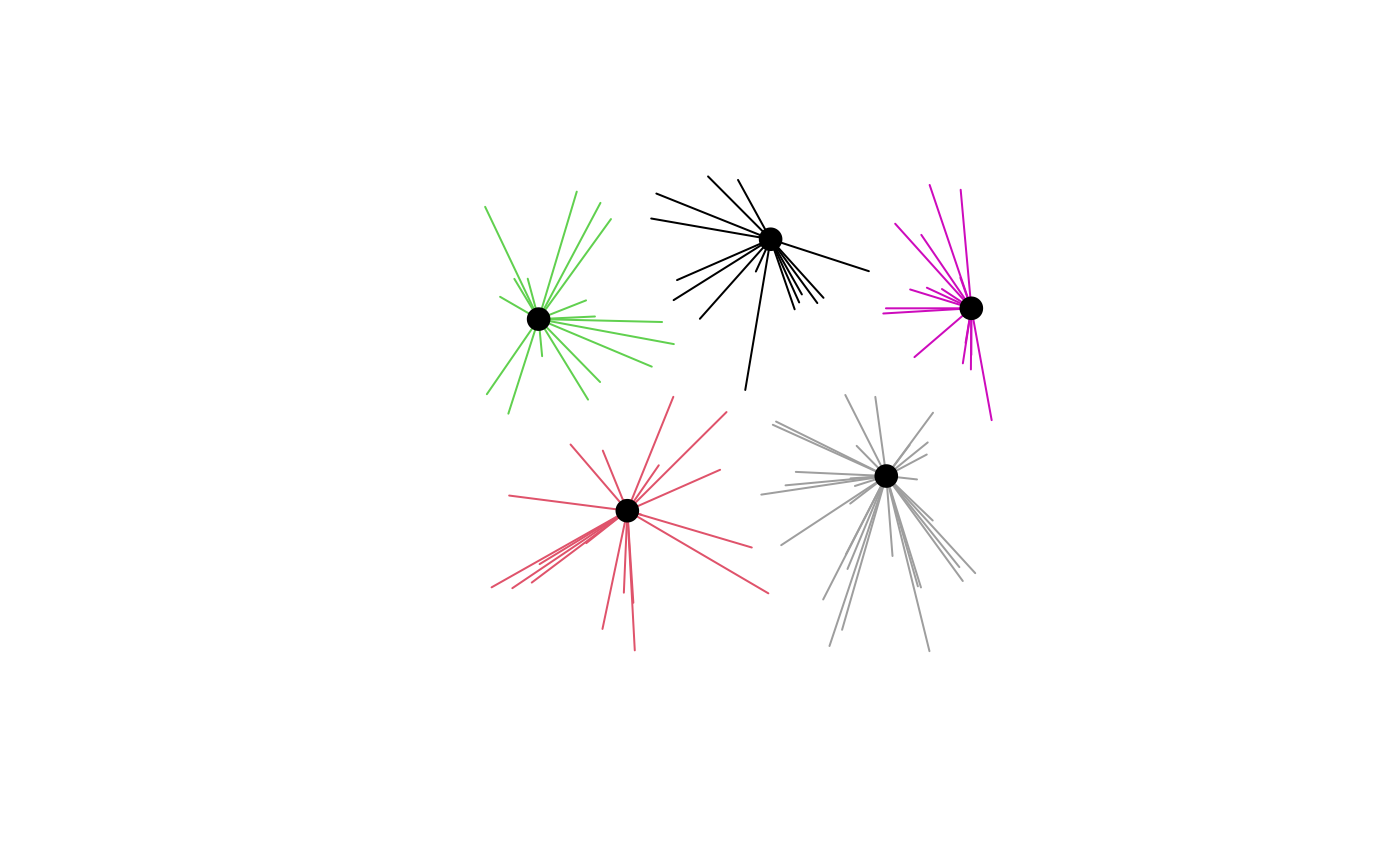

plot(st_geometry(lines), col = lines$facility_index)
plot(st_geometry(result$facilities[result$facilities$.selected, ]),
     pch = 19, cex = 1.5, add = TRUE)

# }

if (FALSE) { # \dontrun{
# Lines that follow the road network, using a local OSRM server
osrm_lines <- function(from, to) {
  geoms <- lapply(seq_len(nrow(from)), function(i) {
    r <- tryCatch(osrm::osrmRoute(src = from[i, ], dst = to[i, ]),
                  error = function(e) NULL)
    if (is.null(r)) sf::st_linestring() else sf::st_geometry(r)[[1]]
  })
  sf::st_sfc(geoms, crs = 4326)
}

routed <- spider_lines(result, route_fun = osrm_lines)
} # }
