Ward Spatial Clustering

Source: R/region_ward.R
ward_spatial.Rd

Performs spatially-constrained hierarchical clustering using Ward's minimum variance method. Only spatially contiguous areas can be merged, ensuring all resulting regions are spatially connected.

Usage

ward_spatial(
  data,
  attrs = NULL,
  n_regions,
  weights = "queen",
  bridge_islands = FALSE,
  scale = TRUE,
  verbose = FALSE
)

Arguments

data

An sf object with polygon or point geometries.

attrs

Character vector of column names to use for clustering (e.g., c("var1", "var2")). If NULL, uses all numeric columns.

n_regions

Integer. Number of regions (clusters) to create.

weights

Spatial weights specification. Can be:

  • "queen" (default): Polygons sharing any boundary point are neighbors

  • "rook": Polygons sharing an edge are neighbors

  • An nb object from spdep or created with sp_weights()

  • A list for other weight types: list(type = "knn", k = 6) for k-nearest neighbors, or list(type = "distance", d = 5000) for distance-based weights

bridge_islands

Logical. If TRUE, automatically connect disconnected components (e.g., islands) using nearest-neighbor edges. If FALSE (default), the function will error when the spatial weights graph is disconnected.

scale

Logical. If TRUE (default), standardize attributes before clustering.

verbose

Logical. Print progress messages.

Value

An sf object with a .region column containing cluster assignments. Metadata is stored in the "spopt" attribute.

Details

This function implements spatially-constrained agglomerative hierarchical clustering using Ward's minimum variance criterion. Unlike standard Ward clustering, this version enforces spatial contiguity by only allowing clusters that share a border to be merged.

The algorithm:

  1. Starts with each observation as its own cluster

  2. At each step, finds the pair of adjacent clusters with minimum Ward distance (increase in total within-cluster variance)

  3. Merges them into a single cluster

  4. Repeats until the desired number of regions is reached

The result guarantees that all regions are spatially contiguous.

Examples

if (FALSE) { # \dontrun{
library(sf)
nc <- st_read(system.file("shape/nc.shp", package = "sf"))

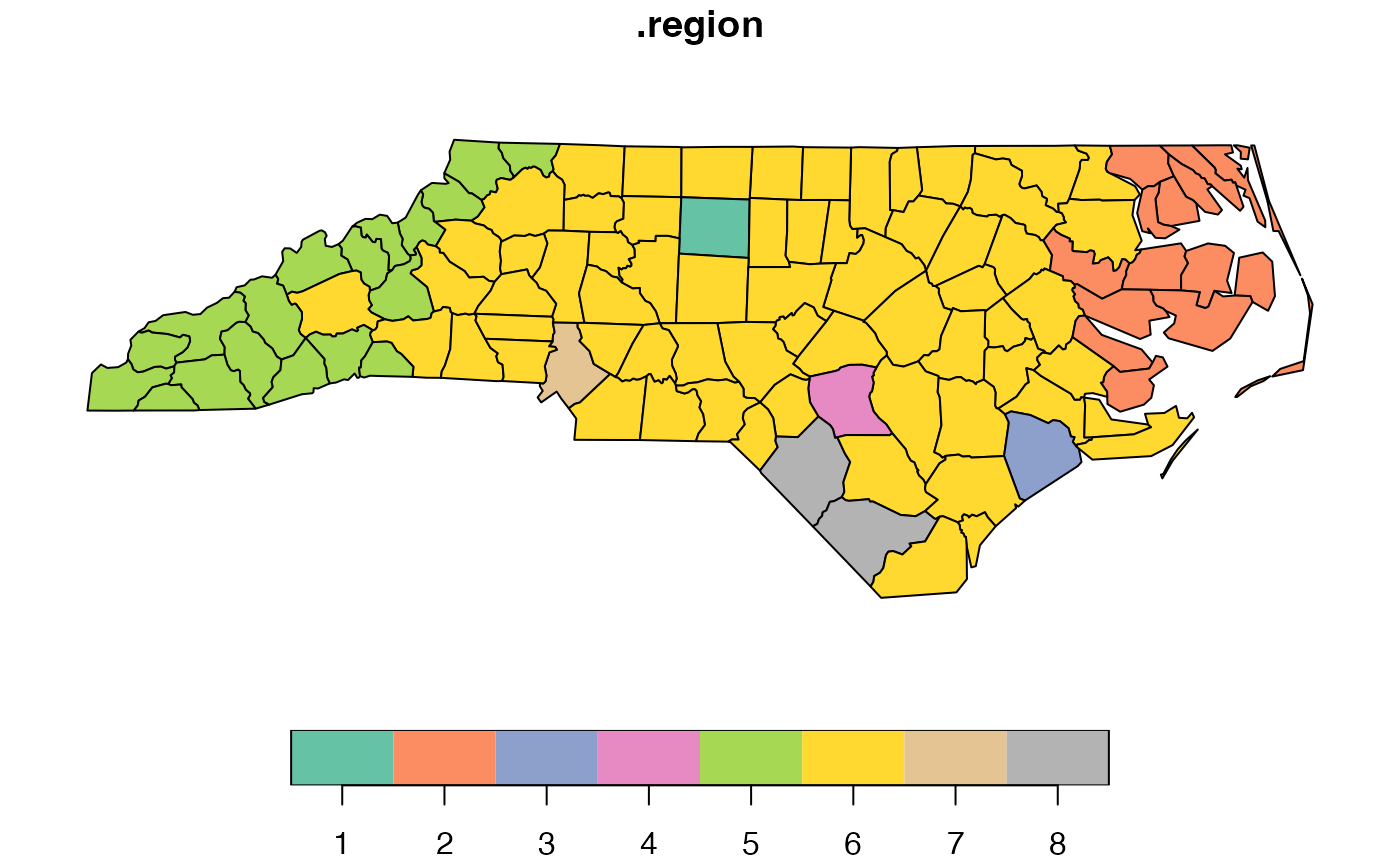

# Cluster into 8 spatially-contiguous regions
result <- ward_spatial(nc, attrs = c("SID74", "SID79"), n_regions = 8)
plot(result[".region"])
} # }
