# Mapping 2020 US Census Data in R
### Kyle Walker
### March 18, 2022

---

## About me

.pull-left[

* Associate Professor of Geography at TCU

* Spatial data science researcher and consultant

* R package developer: __tidycensus__, __tigris__, __mapboxapi__

* Book: [_Analyzing US Census Data: Methods, Maps and Models in R_](https://walker-data.com/census-r/)
  - Available for free online right now;
  - To be published in print with CRC Press in fall 2022

]

.pull-right[

]

---

## SSDAN workshop series

* Last week: an introduction to 2020 US Census data
  - [If you missed the workshop, view the slides here](https://walker-data.com/umich-workshop-2022/intro-2020-census/#1)

* __Right now__: Mapping 2020 Census data

* Friday, March 25: a first look at the 2016-2020 American Community Survey data with R and __tidycensus__

---

## Today's agenda

* Hour 1: Census geographic data and "GIS" in R

* Hour 2: Making maps with 2020 US Census data

* Hour 3: Interactive mapping and advanced geometry handling

---

## General setup

* Packages required for today's workshop:

```r
install.packages(c("tidycensus", "tidyverse", "terra",
                   "tmap", "mapview", "rosm", "crsuggest"))
```

* Other required packages will be picked up as dependencies of these packages

* Or use the pre-built RStudio Cloud environment at https://rstudio.cloud/project/3705005

---
class: middle, center, inverse

## Part 1: Census geographic data and "GIS" in R

---

## US Census Geography

.footnote[Source: [US Census Bureau](https://www2.census.gov/geo/pdfs/reference/geodiagram.pdf)]

---

## Census TIGER/Line shapefiles

.pull-left[

]

.pull-right[

* TIGER: Topologically Integrated Geographic Encoding and Referencing database

* High-quality series of geographic datasets released by the US Census Bureau

* Distributed as _shapefiles_, a common GIS data format comprised of several related files

]

.footnote[Image source: [US Census Bureau](https://www2.census.gov/geo/pdfs/maps-data/data/tiger/tgrshp2020/TGRSHP2020_TechDoc.pdf)]
---

## A typical GIS workflow

---

## The __tigris__ R package

.pull-left[
<img src="https://raw.githubusercontent.com/walkerke/tigris/master/tools/readme/tigris_sticker.png" style="width: 400px">
]

.pull-right[

* R interface to the US Census Bureau's TIGER/Line shapefile FTP server

* No API key necessary - just install the package and start using Census shapefiles in R!

]

---

## Basic usage of tigris

* To use tigris, call a function that corresponds to the Census geography you want, optionally by `state` or `county`, when appropriate

* Defaults to 2020 unless `year` is otherwise specified (up to 2021 is available)

```r
tx_counties <- counties(state = "TX")
```

---

```r
tx_counties
```

```
## Simple feature collection with 254 features and 17 fields
## Geometry type: MULTIPOLYGON
## Dimension:     XY
## Bounding box:  xmin: -106.6456 ymin: 25.83716 xmax: -93.50804 ymax: 36.5007
## Geodetic CRS:  NAD83
## First 10 features:
##     STATEFP COUNTYFP COUNTYNS GEOID      NAME         NAMELSAD LSAD CLASSFP
## 8        48      327 01383949 48327    Menard    Menard County   06      H1
## 12       48      189 01383880 48189      Hale      Hale County   06      H1
## 14       48      011 01383791 48011 Armstrong Armstrong County   06      H1
## 36       48      057 01383814 48057   Calhoun   Calhoun County   06      H1
## 39       48      077 01383824 48077      Clay      Clay County   06      H1
## 56       48      361 01383966 48361    Orange    Orange County   06      H1
## 64       48      177 01383874 48177  Gonzales  Gonzales County   06      H1
## 69       48      147 01383859 48147    Fannin    Fannin County   06      H1
## 71       48      265 01383918 48265      Kerr      Kerr County   06      H1
## 100      48      391 01383981 48391   Refugio   Refugio County   06      H1
##     MTFCC CSAFP CBSAFP METDIVFP FUNCSTAT      ALAND     AWATER    INTPTLAT
## 8   G4020  <NA>   <NA>     <NA>        A 2336237980     613559 +30.8852677
## 12  G4020   352  38380     <NA>        A 2602109423     246678 +34.0684364
## 14  G4020   108  11100     <NA>        A 2354617585   12183672 +34.9641790
## 36  G4020   544  38920     <NA>        A 1312960774 1361631001 +28.4417191
## 39  G4020  <NA>  48660     <NA>        A 2819871858   72506860 +33.7859042
## 56  G4020  <NA>  13140     <NA>        A  864501044  118476459 +30.1223229
## 64  G4020  <NA>   <NA>     <NA>        A 2762704862    8204086 +29.4619121
## 69  G4020   206  14300     <NA>        A 2307251052   20847065 +33.5911611
## 71  G4020   314  28500     <NA>        A 2857617603   10231764 +30.0599530
## 100 G4020  <NA>   <NA>     <NA>        A 1995545557  123688759 +28.3221157
##         INTPTLON                       geometry
## 8   -099.8588613 MULTIPOLYGON (((-99.82187 3...
## 12  -101.8228879 MULTIPOLYGON (((-102.0874 3...
## 14  -101.3566363 MULTIPOLYGON (((-101.6251 3...
## 36  -096.5795739 MULTIPOLYGON (((-96.87329 2...
## 39  -098.2129174 MULTIPOLYGON (((-98.42308 3...
## 56  -093.8940999 MULTIPOLYGON (((-94.03178 3...
## 64  -097.4919205 MULTIPOLYGON (((-97.72765 2...
## 69  -096.1049882 MULTIPOLYGON (((-96.38281 3...
## 71  -099.3533388 MULTIPOLYGON (((-99.25911 2...
## 100 -097.1624723 MULTIPOLYGON (((-97.40849 2...
```

---

```r
plot(tx_counties$geometry)
```

![](index_files/figure-html/basic-plot-1.png)

---

## The __sf__ package and simple feature geometry

.pull-left[

]

.pull-right[

* The sf package implements a _simple features data model_ for vector spatial data in R

* Vector geometries: _points_, _lines_, and _polygons_ stored in a list-column of a data frame

* Allows for tidy spatial data analysis

]

---
class: middle, center, inverse

## Discussion: Making sense of GIS data

---

## Datasets available in tigris

* __Legal entities__: units that have legal significance in the US (e.g. states, counties)

* __Statistical entities__: units that are used to tabulate Census data but do not have legal standing (e.g. Census tracts or block groups)

* __Geographic features__: other geographic datasets provided by the Census Bureau that are not used for demographic tabulation (e.g. roads, water)

---

## Polygons: statistical entities

```r
travis_tracts <- tracts(state = "TX", county = "Travis")

plot(travis_tracts$geometry)
```

![](index_files/figure-html/travis-tracts-1.png)

---

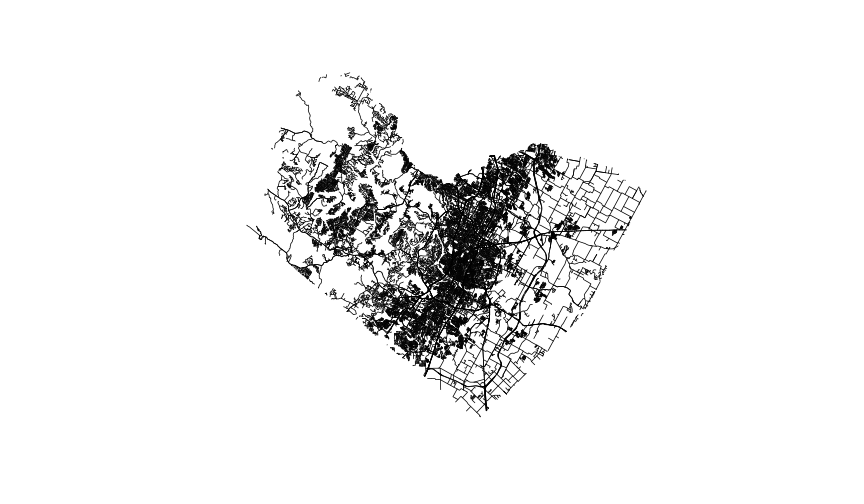

## Lines: geographic features

```r
travis_roads <- roads(state = "TX", county = "Travis")

plot(travis_roads$geometry)
```

![](index_files/figure-html/travis-roads-1.png)

---

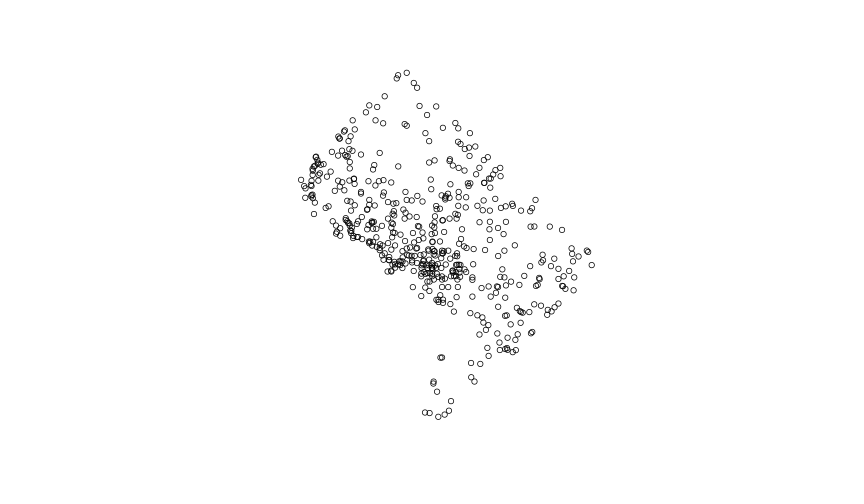

## Points: geographic features

```r
dc_landmarks <- landmarks("DC", type = "point")

plot(dc_landmarks$geometry)
```

![](index_files/figure-html/dc-landmarks-1.png)

---

## How tigris works

When you call a tigris function, it does the following:

* _Downloads_ your data from the US Census Bureau website;

* _Stores_ your data in a temporary directory by default;

* _Loads_ your data into R as a simple features object using `sf::st_read()`

* Recommended option: use `options(tigris_use_cache = TRUE)` to cache downloaded shapefiles and prevent having to re-download every time you use them

---
class: middle, center, inverse

## tigris features and options

---

## Cartographic boundary shapefiles

.pull-left[

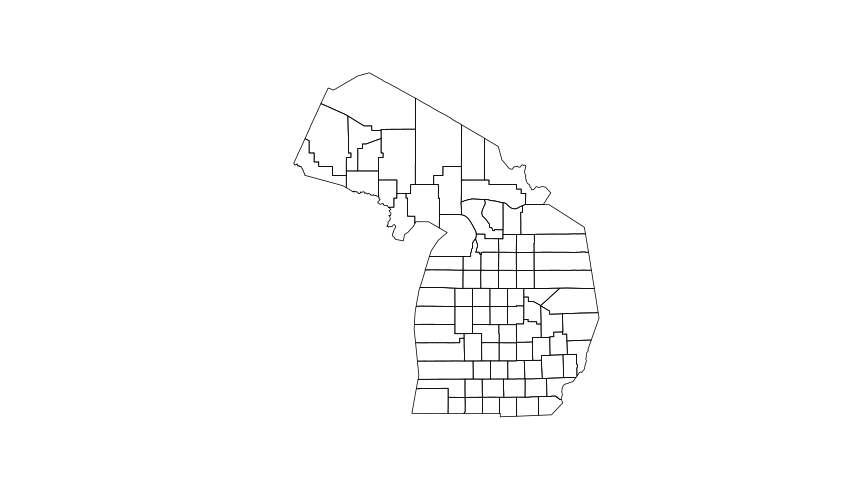

* Question I've received over the years: "Why does Michigan look so weird?"

* The core TIGER/Line shapefiles include _water area_ that belongs to US states and counties

]

.pull-right[

```r
mi_counties <- counties("MI")

plot(mi_counties$geometry)
```

![](index_files/figure-html/michigan-tiger-1.png)
]

---

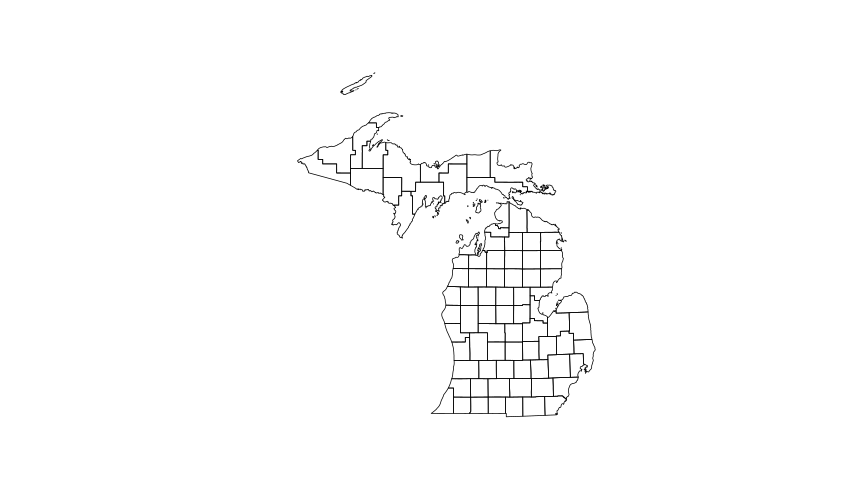

## Cartographic boundary shapefiles

.pull-left[
* Use the argument `cb = TRUE` to obtain a _cartographic boundary shapefile_ pre-clipped to the US shoreline

* For some geographies, highly generalized (1:5 million and 1:20 million) shapefiles are available with the `resolution` argument
]

.pull-right[

```r
mi_counties_cb <- counties("MI", cb = TRUE)

plot(mi_counties_cb$geometry)
```

![](index_files/figure-html/michigan-cb-1.png)
]

---

## Understanding yearly differences in TIGER/Line files

* Whereas legal entities change shape very rarely (but they do change!), statistical entities change with every decennial Census

* tigris fetches Census shapefiles from 1990 up through 2020

```r
tarrant90 <- tracts("TX", "Tarrant", cb = TRUE, year = 1990)
tarrant00 <- tracts("TX", "Tarrant", cb = TRUE, year = 2000)
tarrant10 <- tracts("TX", "Tarrant", cb = TRUE, year = 2010)
tarrant20 <- tracts("TX", "Tarrant", cb = TRUE, year = 2020)
```
---

```r
par(mfrow = c(2, 2))

plot(tarrant90$geometry, main = "1990")
plot(tarrant00$geometry, main = "2000")
plot(tarrant10$geometry, main = "2010")
plot(tarrant20$geometry, main = "2020")
```

![](index_files/figure-html/plot-yearly-data-1.png)

---

## Interactive viewing of data with __mapview__

* The mapview package brings interactive spatial data viewing to R:

```r
library(mapview)

mapview(tarrant20)
```

* As an extension, use the leafsync package to interactively compare two or more maps

```r
library(leafsync)

sync(mapview(tarrant90), mapview(tarrant20))
```

---

## National datasets

* National enumeration units datasets for select geographies (counties, Census tracts, block groups) can be acquired when `cb = TRUE` by leaving the `state` argument blank

```r
us_tracts <- tracts(cb = TRUE)
```

---

```r
us_tracts
```

```
## Simple feature collection with 85190 features and 13 fields
## Geometry type: MULTIPOLYGON
## Dimension:     XY
## Bounding box:  xmin: -179.1489 ymin: -14.5487 xmax: 179.7785 ymax: 71.36516
## Geodetic CRS:  NAD83
## First 10 features:
##    STATEFP COUNTYFP TRACTCE             AFFGEOID       GEOID    NAME
## 1       17      089  853004 1400000US17089853004 17089853004 8530.04
## 2       11      001  005003 1400000US11001005003 11001005003   50.03
## 3       06      037  482503 1400000US06037482503 06037482503 4825.03
## 4       31      153  010630 1400000US31153010630 31153010630  106.30
## 5       12      057  013706 1400000US12057013706 12057013706  137.06
## 6       36      013  035800 1400000US36013035800 36013035800     358
## 7       56      039  967704 1400000US56039967704 56039967704 9677.04
## 8       26      099  261200 1400000US26099261200 26099261200    2612
## 9       26      065  000700 1400000US26065000700 26065000700       7
## 10      42      045  409601 1400000US42045409601 42045409601 4096.01
##                NAMELSAD STUSPS           NAMELSADCO           STATE_NAME LSAD
## 1  Census Tract 8530.04     IL          Kane County             Illinois   CT
## 2    Census Tract 50.03     DC District of Columbia District of Columbia   CT
## 3  Census Tract 4825.03     CA   Los Angeles County           California   CT
## 4   Census Tract 106.30     NE         Sarpy County             Nebraska   CT
## 5   Census Tract 137.06     FL  Hillsborough County              Florida   CT
## 6      Census Tract 358     NY    Chautauqua County             New York   CT
## 7  Census Tract 9677.04     WY         Teton County              Wyoming   CT
## 8     Census Tract 2612     MI        Macomb County             Michigan   CT
## 9        Census Tract 7     MI        Ingham County             Michigan   CT
## 10 Census Tract 4096.01     PA      Delaware County         Pennsylvania   CT
##        ALAND  AWATER                       geometry
## 1    3622334   91650 MULTIPOLYGON (((-88.35003 4...
## 2      94136       0 MULTIPOLYGON (((-77.03195 3...
## 3     729678       0 MULTIPOLYGON (((-118.0995 3...
## 4    4964876       0 MULTIPOLYGON (((-96.23429 4...
## 5     535141   10298 MULTIPOLYGON (((-82.34769 2...
## 6    6855007       0 MULTIPOLYGON (((-79.33622 4...
## 7  199584343 3264367 MULTIPOLYGON (((-111.0366 4...
## 8    1258303       0 MULTIPOLYGON (((-83.00763 4...
## 9     910872   33682 MULTIPOLYGON (((-84.56296 4...
## 10   5880610       0 MULTIPOLYGON (((-75.36051 4...
```

---

## Part 1 exercises

* Give tigris a try for yourselves!  [Explore the available geographies in the tigris documentation](https://github.com/walkerke/tigris) and fetch data for a state and/or county of your choosing.  Plot the result with `plot()` or with `mapview()`.

---
class: middle, center, inverse

## Part 2: Mapping US Census data in R

---

## 2020 Census data in tidycensus: a refresher

* Last week, we learned how to use the __tidycensus__ package to acquire data from the 2020 decennial US Census

* If you need to: [review these slides to get set up with an API key and learn how to make some basic data pulls](https://walker-data.com/umich-workshop-2022/intro-2020-census/#11)

* Core function: `get_decennial()`

---

## Typical Census GIS workflows

Traditionally, getting "spatial" Census data requires:

* Fetching shapefiles from the Census website;

* Downloading a CSV of data, cleaning/formatting it;

* Loading geometries and data into your GIS of choice;

* Aligning key fields in your GIS and joining your data

---

## Geometry in tidycensus

* tidycensus takes care of this entire process with the argument `geometry = TRUE`

```r
library(tidycensus)
options(tigris_use_cache = TRUE)

tx_population <- get_decennial(
  geography = "county",
  variables = "P1_001N",
  state = "TX",
  year = 2020,
* geometry = TRUE
)
```

---

```r
tx_population
```

```
## Simple feature collection with 254 features and 4 fields
## Geometry type: MULTIPOLYGON
## Dimension:     XY
## Bounding box:  xmin: -106.6456 ymin: 25.83738 xmax: -93.50829 ymax: 36.5007
## Geodetic CRS:  NAD83
## # A tibble: 254 × 5
##    GEOID NAME                   variable  value                         geometry
##    <chr> <chr>                  <chr>     <dbl>               <MULTIPOLYGON [°]>
##  1 48005 Angelina County, Texas P1_001N   86395 (((-95.00488 31.42396, -95.0033…
##  2 48225 Houston County, Texas  P1_001N   22066 (((-95.77535 31.12205, -95.7744…
##  3 48373 Polk County, Texas     P1_001N   50123 (((-95.20018 30.82457, -95.1750…
##  4 48473 Waller County, Texas   P1_001N   56794 (((-96.19178 30.13842, -96.1901…
##  5 48441 Taylor County, Texas   P1_001N  143208 (((-100.1518 32.09064, -100.151…
##  6 48055 Caldwell County, Texas P1_001N   45883 (((-97.89707 29.86437, -97.8961…
##  7 48355 Nueces County, Texas   P1_001N  353178 (((-97.11172 27.89307, -97.1083…
##  8 48273 Kleberg County, Texas  P1_001N   31040 (((-97.3178 27.49456, -97.3159 …
##  9 48489 Willacy County, Texas  P1_001N   20164 (((-97.2581 26.42544, -97.25596…
## 10 48377 Presidio County, Texas P1_001N    6131 (((-104.9801 30.62514, -104.979…
## # … with 244 more rows
```

---

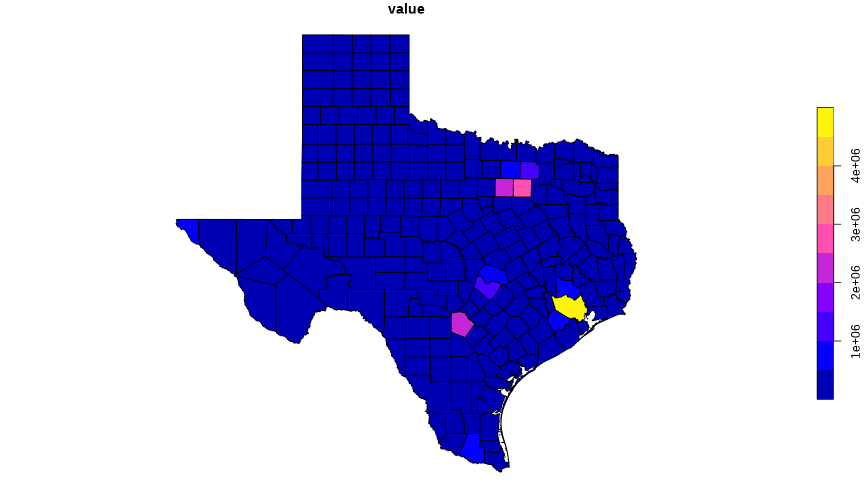

## Basic mapping with base plotting

```r
plot(tx_population["value"])
```

![](index_files/figure-html/plot-geometry-1.png)

---

## Basic mapping with ggplot2

* `geom_sf()`: ggplot2 method to use simple features in your data visualization workflows

```r
library(tidyverse)

tx_map <- ggplot(tx_population, aes(fill = value)) +
  geom_sf()
```

---

```r
tx_map
```

![](index_files/figure-html/plot-geom-sf-1.png)

---
class: middle, center, inverse

## Mapping Census data with tmap

---

## The tmap package

.pull-left[

]

.pull-right[

* Comprehensive package for thematic mapping in R

* ggplot2-like syntax, but designed in a way to feel friendly to GIS cartographers coming to R for mapping

]

---

## Example data

* Our example: comparing the distributions of racial and ethnic groups in Cook County, Illinois (Chicago)

```r
hennepin_race <- get_decennial(
  geography = "tract",
  state = "MN",
  county = "Hennepin",
  variables = c(
    Hispanic = "P2_002N",
    White = "P2_005N",
    Black = "P2_006N",
    Native = "P2_007N",
    Asian = "P2_008N"
  ),
  summary_var = "P2_001N",
  year = 2020,
  geometry = TRUE
) %>%
  mutate(percent = 100 * (value / summary_value))
```

---

```r
dplyr::glimpse(hennepin_race)
```

```
## Rows: 1,645
## Columns: 7
## $ GEOID         <chr> "27053026707", "27053026707", "27053026707", "2705302670…
## $ NAME          <chr> "Census Tract 267.07, Hennepin County, Minnesota", "Cens…
## $ variable      <chr> "Hispanic", "White", "Black", "Native", "Asian", "Hispan…
## $ value         <dbl> 175, 4215, 258, 34, 178, 224, 4581, 658, 21, 188, 285, 2…
## $ summary_value <dbl> 5188, 5188, 5188, 5188, 5188, 5984, 5984, 5984, 5984, 59…
## $ geometry      <MULTIPOLYGON [°]> MULTIPOLYGON (((-93.49271 4..., MULTIPOLYGO…
## $ percent       <dbl> 3.37316885, 81.24518119, 4.97301465, 0.65535852, 3.43099…
```

---

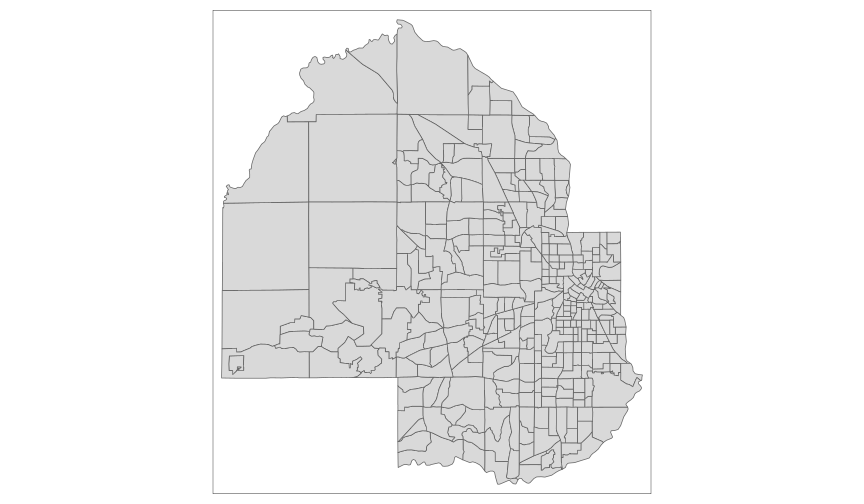

## Basic plotting with tmap

.pull-left[

* `tm_shape()` initializes the shape; `tm_polygons()` shows the polygons for quick display

```r
library(tmap)

hennepin_black <- filter(hennepin_race,
                         variable == "Black")

tm_shape(hennepin_black) +
  tm_polygons()
```

]

.pull-right[

![](index_files/figure-html/polygons-map-1.png)

]

---

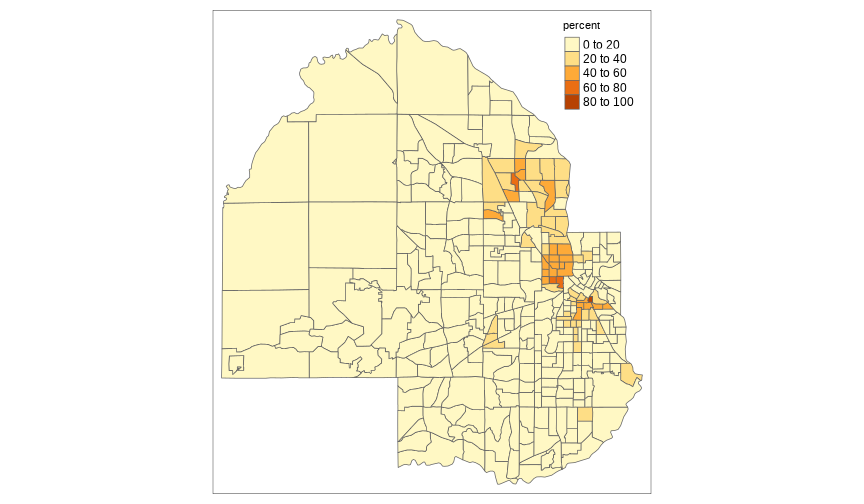

## Choropleth mapping with tmap

.pull-left[

* _Choropleth maps_ show statistical variation through color or shading of areas

* They generally should be used with _normalized data_ such as rates or percentages, not counts

```r
tm_shape(hennepin_black) +
  tm_polygons(col = "percent")
```

]

.pull-right[

![](index_files/figure-html/choropleth-show-1.png)

]

---

## Modifying choropleth options

* Color palettes can be modified with the `palette` parameter, which accepts ColorBrewer and viridis palettes

* If you've mapped with GIS software before, the `style` parameter implements various breaks methods, including `"equal"`, `"quantile"` and `"jenks"`

---

.pull-left[

```r
tm_shape(hennepin_black) +
  tm_polygons(col = "percent",
          style = "quantile",
          n = 7,
          palette = "Purples",
          title = "2020 US Census") +
  tm_layout(title = "Percent Black\nby Census tract",
            frame = FALSE,
            legend.outside = TRUE)
```

]

.pull-right[

![](index_files/figure-html/custom-choropleth-show-1.png)

]

---

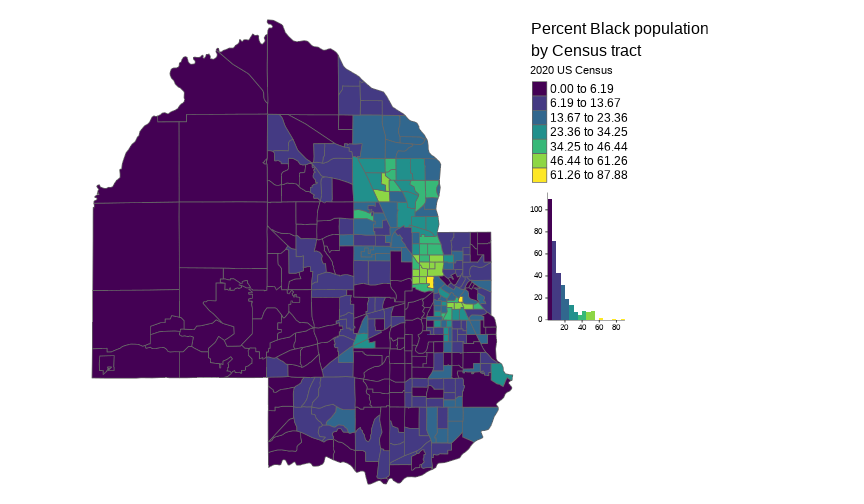

## tmap choropleth tips and tricks

* Use `tmaptools::palette_explorer()` to interactively browse color options

* Use the option `tm_layout(legend.hist = TRUE)` to display the distribution of data values among classes

---

.pull-left[

```r
library(sf)

tm_shape(hennepin_black) +
  tm_polygons(col = "percent",
          style = "jenks",
          n = 7,
          palette = "viridis",
          title = "2020 US Census",
          legend.hist = TRUE) +
  tm_layout(title = "Percent Black population\nby Census tract",
            frame = FALSE,
            legend.outside = TRUE)
```

]

.pull-right[

![](index_files/figure-html/jenks-show-1.png)

]

---

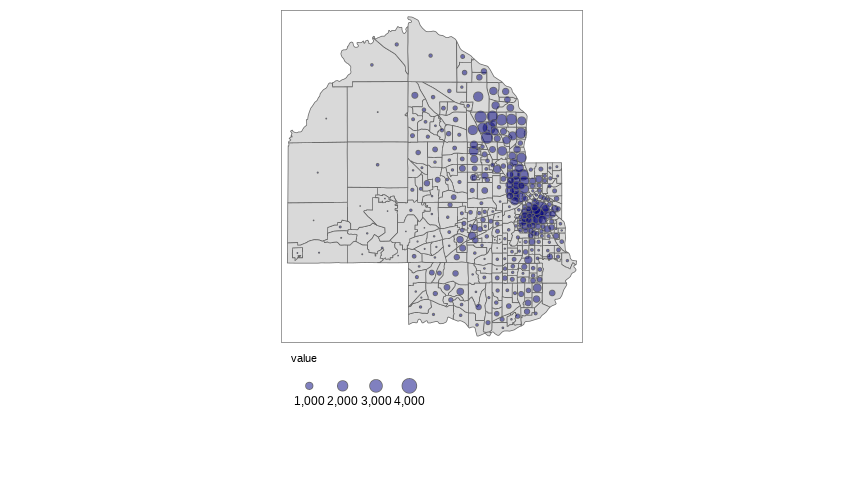

## Graduated symbol maps

* Graduated symbols: using _size_ of a symbol to represent statistical variation on a map

* Implemented in tmap with `tm_bubbles()`

```r
symbol_map <- tm_shape(hennepin_black) +
  tm_polygons() +
  tm_bubbles(size = "value", alpha = 0.5,
             col = "navy") +
  tm_layout(legend.outside = TRUE,
            legend.outside.position = "bottom")
```

---

```r
symbol_map
```

![](index_files/figure-html/bubbles-map-1.png)

---

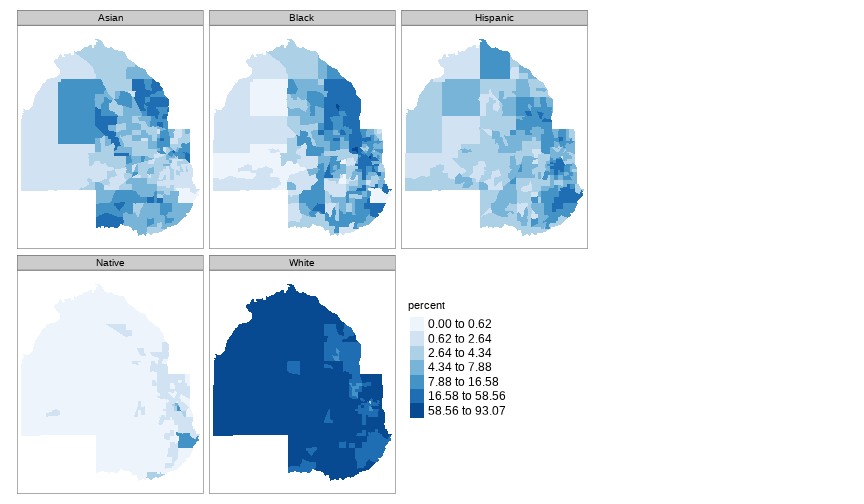

## Faceted mapping

* `tm_facets()` allows for comparative small multiples maps.  It works well with long-form spatial data returned by tidycensus

```r
facet_map <- tm_shape(hennepin_race) +
  tm_facets(by = "variable", scale.factor = 4) +
  tm_fill(col = "percent",
          style = "quantile",
          n = 7,
          palette = "Blues") +
* tm_layout(legend.position = c(-0.7, 0.15))
```

---

```r
facet_map
```

![](index_files/figure-html/facet-map-1.png)

---

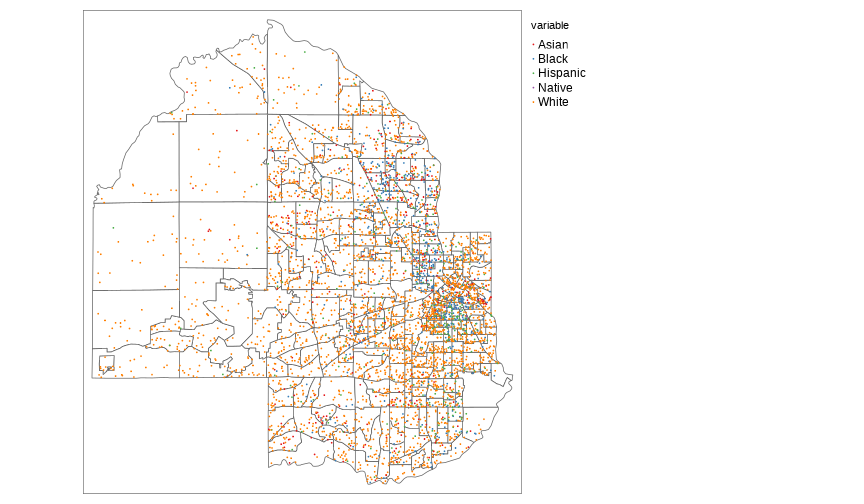

## Dot-density maps

.pull-left[

* Dot-density maps are useful alternatives to choropleth maps as they can represent internal heterogeneity of Census geographies

* __A brand-new function in tidycensus__ (GitHub version for now), `as_dot_density()`, helps you create group-wise dots for dot-density mapping

* Map the result with `tm_dots()`

]

.pull-right[

```r
hennepin_dots <- hennepin_race %>%
  as_dot_density(
    value = "value",
    values_per_dot = 250,
    group = "variable"
  )

hennepin_base <- hennepin_race %>%
  distinct(GEOID, .keep_all = TRUE)

dot_map <- tm_shape(hennepin_base) +
  tm_polygons(col = "white") +
  tm_shape(hennepin_dots) +
  tm_dots(col = "variable",
          palette = "Set1",
          size = 0.01) +
  tm_layout(legend.outside = TRUE)
```

]

---

```r
dot_map
```

![](index_files/figure-html/dot-density-map-show-1.png)

---
class: middle, center, inverse

## Adding cartographic elements

---

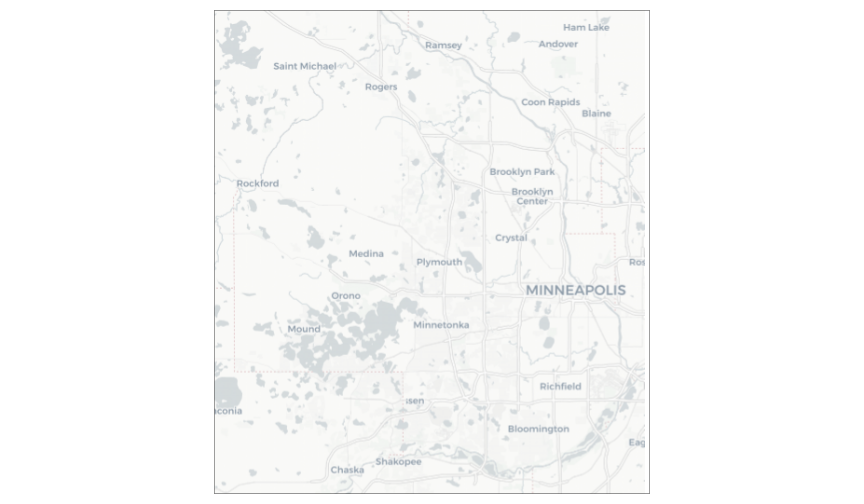

## Adding basemaps

.pull-left[

* Thematic maps often will use _basemaps_ with a semi-transparent overlay to provide important geographic context to the mapped data

* The easiest way to get a basemap for __tmap__ is with the __rosm__ package

```r
library(rosm)

basemap <- osm.raster(
  st_bbox(hennepin_black),
  zoom = 10,
  type = "cartolight",
  crop = TRUE
)
```

]

.pull-right[

```r
tm_shape(basemap) +
  tm_rgb()
```

![](index_files/figure-html/show-basemap-1.png)

]

---

## Adding basemaps

.pull-left[

* Modify the transparency with an `alpha` value to show the basemap beneath the Census tract polygons

```r
tm_shape(basemap) +
  tm_rgb() +
  tm_shape(hennepin_black) +
  tm_polygons(col = "percent",
          style = "quantile",
          n = 7,
          palette = "Purples",
          title = "2020 US Census",
*         alpha = 0.6) +
  tm_layout(title = "Percent Black\nby Census tract",
            legend.outside = TRUE)
```

]

.pull-right[

![](index_files/figure-html/map-with-basemap-show-1.png)

]

---

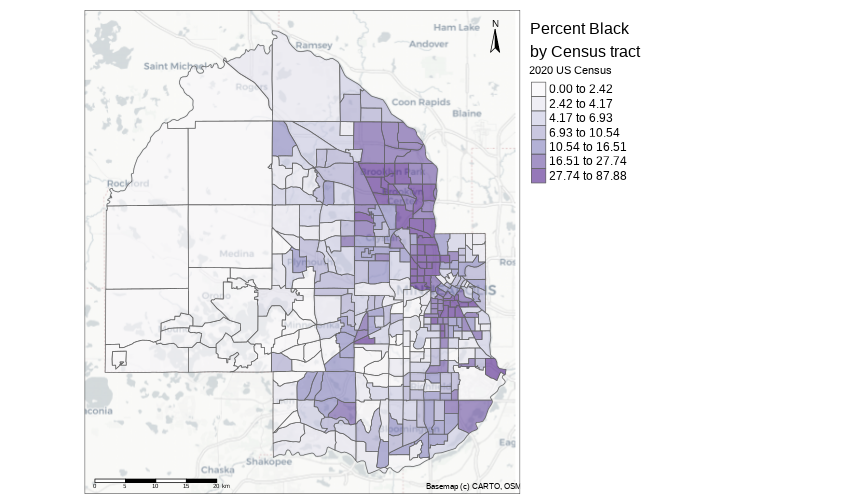

## Adding cartographic elements

.pull-left[

* __tmap__ also has built-in support for north arrows, scale bars, and credits

```r
tm_shape(basemap) +
  tm_rgb() +
  tm_shape(hennepin_black) +
  tm_polygons(col = "percent",
          style = "quantile",
          n = 7,
          palette = "Purples",
          title = "2020 US Census",
          alpha = 0.6) +
  tm_layout(title = "Percent Black\nby Census tract",
            legend.outside = TRUE) +
* tm_scale_bar(position = c("left", "BOTTOM")) +
* tm_compass(position = c("right", "top")) +
* tm_credits("Basemap (c) CARTO, OSM",
*            bg.color = "white",
*            position = c("RIGHT", "BOTTOM"),
*            bg.alpha = 0,
*            align = "right")
```

]

.pull-right[

![](index_files/figure-html/cartographic-elements-show-1.png)

]

---

## What if I still want to use a GIS?

* No problem! Write out your data to a shapefile/GeoJSON/GeoPackage with `sf::st_write()` and load into your GIS of choice

* Recommendation: use `output = "wide"` for multi-variable datasets (easier to use in a desktop GIS)

```r
library(sf)

st_write(tx_population, "data/tx_population.shp")
```

---

## Part 2 exercises

Try making your own map with tmap!

* If you are just getting started with tidycensus/the tidyverse, make a race/ethnicity map by adapting the code provided in this section but for a different county.

* If you are comfortable with tidycensus at this stage, pick a different variable to map instead!

---
class: middle, center, inverse

## Interactive mapping and advanced geometry handling

---

## Interactive maps with tmap

* Regular __tmap__ code can generate interactive maps by setting `tmap_mode("view")`

```r
tmap_mode("view")

tm_shape(hennepin_black) +
  tm_polygons(col = "percent",
          style = "quantile",
          n = 7,
          palette = "Purples",
          title = "Percent Black<br/>by Census tract",
          alpha = 0.6)
```

---

## Customizing interactive maps

* As with static maps, __tmap__ includes a wide range of options for customizing interactive maps

```r
*tmap_options(basemaps = c("Esri.WorldTopoMap", "Stamen.TonerLite",
*                         "CartoDB.DarkMatter"))

tm_shape(hennepin_black) +
  tm_polygons(col = "percent",
          style = "quantile",
          n = 7,
          palette = "Purples",
          title = "Percent Black<br/>by Census tract",
          alpha = 0.6,
*         id = "NAME")
```

---

## Saving interactive maps

* Use `tmap_save()` to write an interactive map to a website (also works for static plots!)

```r
tmap_save(tmap_obj, "hennepin_black.html")
```

---

## Interactive maps with mapview

* Informative interactive choropleth maps can be generated quickly with `mapview::mapview()` by specifying a `zcol` argument

```r
mapview(hennepin_black, zcol = "percent")
```

---
class: middle, center, inverse

## Additional resources for interactive maps

---
class: middle, center, inverse

## Advanced geometry handling

---

## Mapping population density

.pull-left[

* When __tidycensus__ calls __tigris__ internally to get Census geometries, it dismisses all the information (besides the geometry) from the __tigris__ object by default

* The argument `keep_geo_vars = TRUE` keeps the information from __tigris__, which includes a column, `ALAND` for land area in meters

* This can be used to calculate and map population density

]

.pull-right[

```r
mi_density <- get_decennial(
  geography = "county",
  variables = "P1_001N",
  state = "MI",
  year = 2020,
* geometry = TRUE,
* keep_geo_vars = TRUE
) %>%
  mutate(density = 1000000 * (value / ALAND))
```

]

---

## Mapping population density

* Maps of population density (and everything else, typically!) should aim to minimize distortion of areas

* Solution: use a _projected coordinate reference system_

```r
tmap_mode("plot")

library(crsuggest)
# View the mi_crs object and pick a suitable CRS for the state
mi_crs <- suggest_crs(mi_density)
# Use that CRS for your map
mi_density_map <- tm_shape(mi_density, projection = 6497) +
  tm_polygons(col = "density", style = "cont",
              palette = "Blues", title = "People/km2")
```

---

```r
mi_density_map
```

![](index_files/figure-html/mi-density-map-1.png)

---

## The problem with national maps

* A common use-case is generating a map of data for the entire United States.  Let's get some data:

```r
us_percent_hispanic <- get_decennial(
  geography = "county",
  variables = "P2_002N",
  summary_var = "P2_001N",
  year = 2020,
  geometry = TRUE
) %>%
  mutate(percent = 100 * (value / summary_value))
```

---

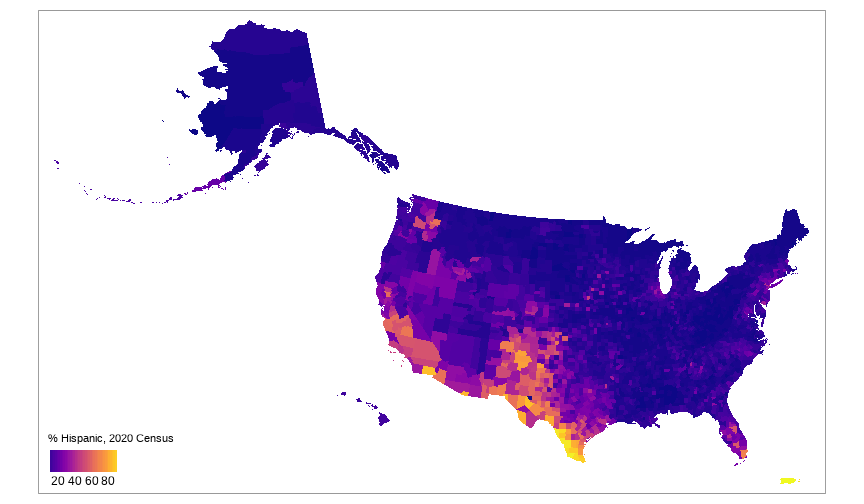

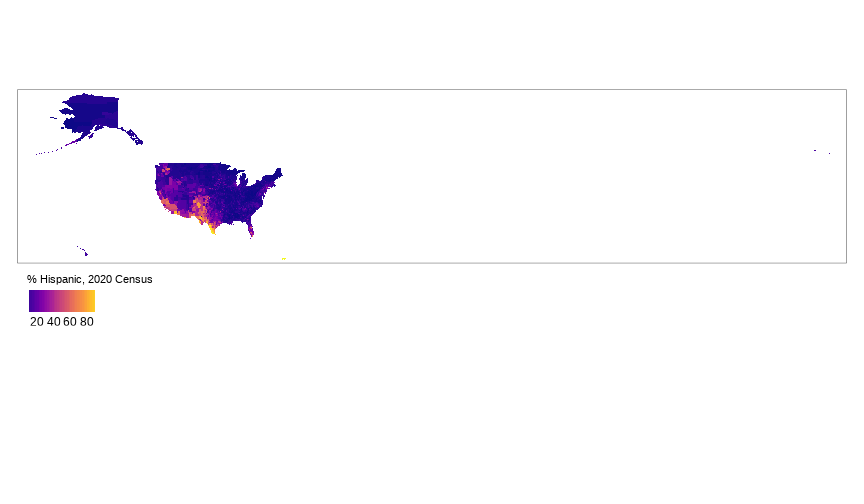

## The problem with national maps

* As we'll see, mapping the entire US by default does not work well

```r
national_map <- tm_shape(us_percent_hispanic) +
  tm_polygons(col = "percent", palette = "plasma",
              lwd = 0.05, style = "cont",
              legend.is.portrait = FALSE,
              title = "% Hispanic, 2020 Census") +
  tm_layout(legend.outside = TRUE, legend.outside.position = "bottom")
```

---

```r
national_map
```

![](index_files/figure-html/show-national-map-1.png)

---

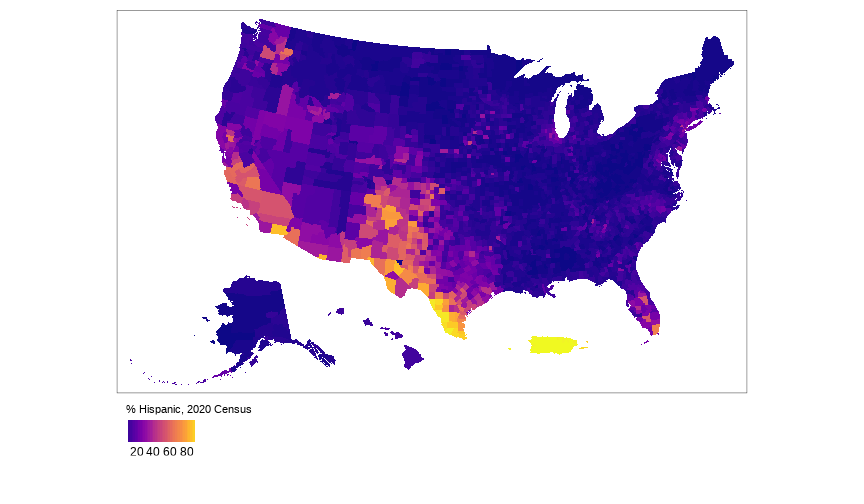

## "Shifting" and re-scaling US geometry

* Use the `shift_geometry()` function in the __tigris__ package to move Alaska, Hawaii, and Puerto Rico to better positions for national mapping

```r
us_rescaled <- shift_geometry(us_percent_hispanic)

rescaled_map <- tm_shape(us_rescaled) +
  tm_polygons(col = "percent", palette = "plasma",
              lwd = 0.05, style = "cont",
              legend.is.portrait = FALSE,
              title = "% Hispanic, 2020 Census") +
  tm_layout(legend.outside = TRUE, legend.outside.position = "bottom",
            legend.outside.size = 0.2)
```

---

```r
rescaled_map
```

![](index_files/figure-html/rescaled-map-show-1.png)

---

## "Shifting" and re-scaling US geometry

* Use `preserve_area = TRUE` to preserve the relative area of Alaska, Hawaii, and Puerto Rico relative to the continental US

```r
us_shifted <- shift_geometry(us_percent_hispanic,
                              position = "outside",
                              preserve_area = TRUE)

shifted_map <- tm_shape(us_shifted) +
  tm_polygons(col = "percent", palette = "plasma",
              lwd = 0.05, style = "cont",
              legend.is.portrait = FALSE,
              title = "% Hispanic, 2020 Census") +
  tm_layout(legend.position = c("left", "BOTTOM"))
```

---

```r
shifted_map
```

![](index_files/figure-html/shifted-map-show-1.png)

---

## The problem with water areas

.pull-left[

* Locations with signficant water area (e.g. Seattle, New York City) will often have Census tracts that cover rivers and lakes where no one lives

* Census maps may then misrepresent what viewers expect to see from a location

]

.pull-right[

```r
king_asian <- get_decennial(
  geography = "tract",
  variables = c(asian = "P2_008N",
                total = "P2_001N"),
  state = "WA",
  county = "King",
  geometry = TRUE,
  year = 2020,
  output = "wide"
) %>%
  mutate(percent = 100 * (asian / total))

mapview(king_asian, zcol = "percent")
```

]

---

## "Erasing" water areas

.pull-left[

* The `erase_water()` function in the __tigris__ package will remove water areas above a given area threshold (size percentile) from a spatial dataset

* Performs best when data are in a _projected coordinate reference system_ ([read here for more information](https://walker-data.com/census-r/census-geographic-data-and-applications-in-r.html#coordinate-reference-systems))

]

.pull-right[

```r
library(sf)

king_erase <- king_asian %>%
* st_transform(6596) %>%
* erase_water(area_threshold = 0.9)

mapview(king_erase, zcol = "percent")
```

]

---

## Dasymetric dot-density mapping

.pull-left[

* The new `as_dot_density()` function in __tidycensus__ integrates `erase_water()` for _dasymetric dot placement_, where dots will not be placed in water areas

* Helpful for locations like Minneapolis, which have a lot of lakes!

]

.pull-right[

```r
hennepin_dots_dasy <- hennepin_race %>%
  st_transform(26914) %>%
  as_dot_density(
    value = "value",
    values_per_dot = 250,
    group = "variable",
    erase_water = TRUE
  )

hn_basemap <- osm.raster(st_bbox(hennepin_race),
                         zoom = 10,
                         type = "cartolight",
                         crop = TRUE)

tm_shape(hn_basemap) +
  tm_rgb() +
  tm_shape(hennepin_dots_dasy) +
  tm_dots(col = "variable",
          palette = "Set1",
          size = 0.01) +
  tm_layout(legend.outside = TRUE)
```

]

---

---

## Part 3 exercises

* Using a static map you created in Part 2 of the workshop, try converting to an interactive map with `tmap_mode("view")`

* Experiment with the `shift_geometry()` function and try different combinations of the `preserve_area` and `position` arguments.  Which layout do you prefer, and why?

---
class: middle, center, inverse

## Thank you!
